Low Noise High Performance Plastic Pipe Extrusion Line For Pvc Gridding Pipe

Brand Name:	AORUI
Model Number:	SJSZ65/132
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Condition:

NEW

Product Type:

PVC Pipe Machine

Material:

PVC

Application:

PVC Pipe

Pipe Thickness:

1-3mm

Temperature Controller:

Omron

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

Low Noise High Performance Plastic Pipe Extrusion Line For Pvc Gridding Pipe

Quick detail

1. Pipe characteristics

The wall of pipe is three layers,outer and inner layer are soft PVC hose, middle layeris terylene fiber network,has good chemical and physical property.

2. Pipe application

Mainly used for the transportation of high pressure of corrosive gas,and is widely used in machinery,coal mine,oil,chemical,agriculture,gas and building.

Specifications:

1. The pipes produced by this line have performance below:

The wall of pipe is transparent soft PVC with spiral steel wire inside, featuring extrusion resistance, corrosion resistance, static electricity resistance, anti-high voltage and good running. It is suitable for the conveying of high pressure or explosive gas and liquid, heavy suction and delivery of liquid sludge. It is mainly used for chemical industry, building and vacuum pumps etc.

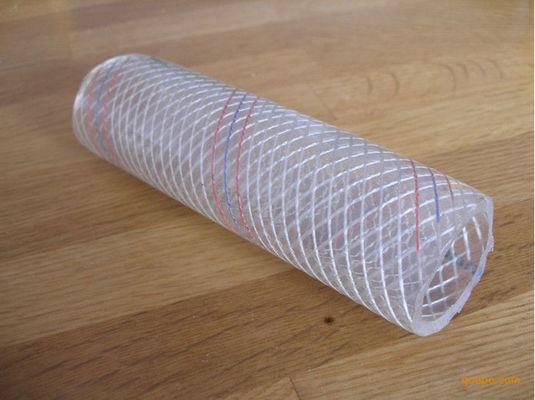

2. PVC fiber reinforced hose also named as PVC net hose, commonly called as snake hose, suitable for pressure or corrosive gas, liquid transporting, widely used in machinery, coal, petroleum, chemical industry, agricultural irrigation, construction, civil and other fields. Now also used in a large number of gardens, lawn watering.

Main technical parameter

Model	Pipe dia/mm	extruder	Speed/m	Total power/kw	Output/kg
63	12-32mm	SJ45	1-8	25	50
75	16-75mm	SJ65	1-6	70	100
110	75-160mm	SJ90	1-5	130	250

Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
