| Brand Name: | AORUI |
| Model Number: | SJSZ80/156 |
| MOQ: | One set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 Sets per month |

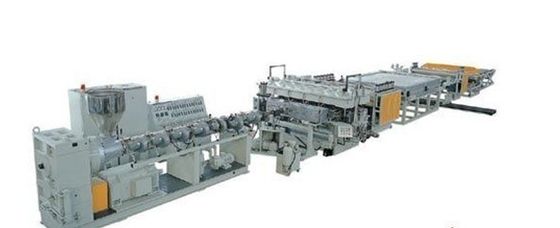

PVC WPC Foam Board Sheet Wood Plastic Composite Extrusion Line / Production Line / Extruder
QUICK DETAIL :
1. PVC Foaming Plastic-wood Profile & Sheet/Plastic Window & Door Profile Extrusion Line is used to produce crust foam board which are used for furniture, cabinet,decoration, advertising etc.
2. Production flow of PVC/WPC foam board:
Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards
Description:

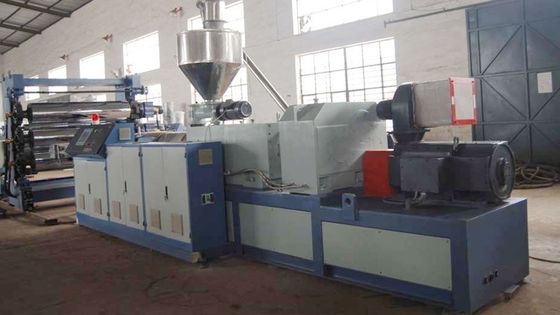

1. plastic machine Conical Twin Screw extruder for PVC WPC sheet line is composed of barrel screw, gear transmission system, measurable feeding, vacuum deaerating, heating, cooling and electronic control components etc. It is mainly used in plasticizing, extruding and forming of PVC pipes, plates, sheets, film, profiles, and granules etc.
2. The PVC free foamed sheet/decoration/sheet production line is specially designed for the extrusion of single layer or multi-layer plate and sheet of PC or PMMA. It is also suitable for the sheet extrusion of PE,PP,PS,ABS and other materials.
3. The sheet extrusion line is applied to various plastic sheet machining of PVC. The plastic extruder is designed with advanced technology introducing from home and abroad. Qingdao Aorui plastic machinery Co., Ltd specialized in PVC skinning or free foam board extrusion line. Welcome to contact us about Extruder & Extrusion line of plastic sheet.
Specifications:
| Production Width | 1220mm | 1560mm | 2050mm | 1200-2400mm |
| Production thickness | 5-25mm | 8-18mm | 8-15mm | 1-15mm |
| Extruder Model | SJZ80/156 | SJZ92/188 | SJZ92/188 | SJZ80/156 |
| Capacity (Max.) | 500kgs/h | 650kgs/h | 650kgs/h | 450kgs/h |
| Main Motor Power | 75KW | 132KW | 132KW | 75KW |
Competitive Advantage:
experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
