Plastic Sheet Extrusion Line
Created with Pixso.

PP PC Hollow Plastic Sheet Extrusion Line for PVC Hollow Grid Board Production

PP PC Hollow Plastic Sheet Extrusion Line for PVC Hollow Grid Board Production

Brand Name: AORUI
Model Number: SJSZ51/105
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE ISO9001
Model Number:
SJSZ51/105
Brand Name:
Aorui
Type Of Extruder:
Twin Screw
Port:
Qingdao
Screw&Barrel Material:
38Cr MOAIA
Warranty:
1 Year
Delivery Time:
30 Days
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

plastic sheet production line

,

plastic sheet extruder machine

Product Description

PP PC Hollow Sheet Extrusion Line , PVC PP Hollow Grid Board Production Line





QUICK DETAIL :

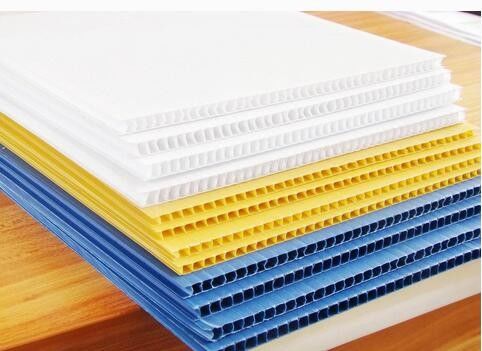

1. Specification of the PP hollow sheet:

This production line is used to produce the PP, PC hollow grid sheet line.

PP finished sheet width 1220-2100mm, thickness: 2-14mm.

PC finished sheet width:1220-2100mm, thickness: 2-25mm.



2. Application of the plastic PP hollow sheet:

PC Hollow sheet is widely used as sun proof ceilings of office building, hall, market, stadium, recreation center and public facilities; weather shed of bus station, summer house, and corridor of lounge hall;







Description:


1. PP PE sheet extrusion line



The features:

1.even plastication and agglomeration,

2.reliable quality,

3.wide application range,

4.long servicing life and direct conversion of powder into plastic products.

5.Equipped with our company's different mould tools down stream equipment, they can directly produce plastic products like pipers, rods, plates and profiles.

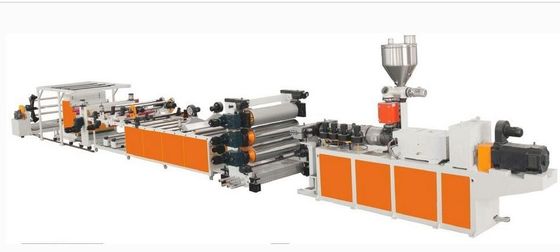

2. Equipment List:
1. Single Screw Extruder(SJ120x35)
2. Hydraulic screen exchanger, Gear pump
3. T-die
4. Air knife
5. calibration unit

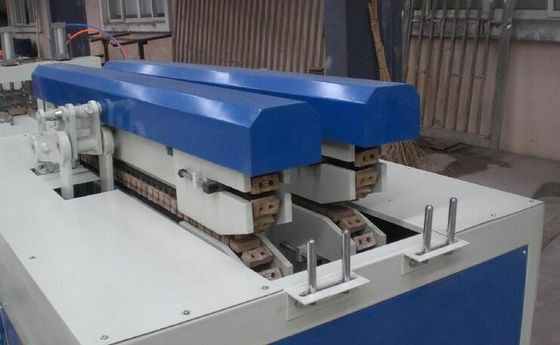

6. the first haul-off unit
7. Side trimming machine
8. anneal oven
9. cooling system by air
10. Second haul-off unit
11. transverse cutter
12. transmission unit











Specifications:



Model 45/90 51/105 55/110 65/132 80/156 92/188
Power of drive motor(kw) 15 18.5 22 37 55/75 110
Screw diameter(mm) Ø45/90 Ø 51/105 Ø 55/110 Ø 65/132 Ø 80/156 Ø 92/188
No. of screw 2 2 2 2 2 2
Rotational speed(N.W) 34.7 34.7 34.7 34.7 34.7 34.7
Screw torque 3148 6000 7000 10000 14000 32000
Capacity PVCpowder(kg/h) 70 100 150 250 400 750
Central height(mm) 1000 1000 1000 1000 1100 1200








Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
