Product Details:
|
| Certificate: | CE ISO9001 | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380V 50HZ | Condition: | New |
| Place Of Original: | 380V 50HZ | Port: | Qingdao |
| Temperature Control: | Omron | Screw Number: | One |
| High Light: | Plastic Granulating Machine,WPC Extrusion Line |
||
Extrusion Blow Moulding Machines Plastic PE Pipe Production Line , PE Pipes Extrusion Line
Quick detail
PE/PP/PPR pipe production line with price
1. Diameter: 16-630mm,
2. Output: 150-1000kg/h,
3. Extrusion speed: 0.1-15m/min,
4. Installed power: 85-480kw
Process

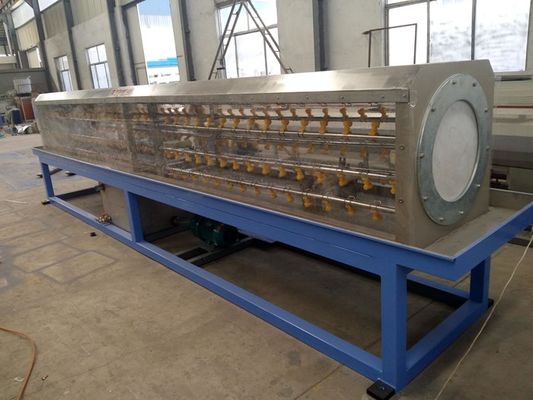

material Hopper Dryer and Auto charger → PE pipe extruder → marking line extruder → mould → calibrator → vacuum calibration tank → spray cooling water tank → printer → haul-off → cutter → pipe discharging rack
Description:
1. The Screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head for HDPE(PP,PPR,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing,lower pressure of cavity, and stable production.
2. Specail design cacumm sizing tank can ensure the stability of size and roundness.Speed controllers are used in extruder. haul-off offer stability and precision. The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.
3. The optimum spiral structure feeding throat highly improves the output of extrude
.Accurate temperature control system ensures materials melting performance. Unique screw design achieves better plasticizing and high quality products. Precisely designed gearbox with a high torsion guarantees stable running. "H" shape frame to decrease vibrating of extruder.
4. Advanced PLC operation system realizes synchronization and automation. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks .Offer stable haul-off unit with 2-12 caterpillars. Provide saw & chip-free cutting options. Low energy consumption, excellent performance, and easy maintenance
Application of PE Pipe Production Line:
High Quality PE HDPE Pipe Production Line / Plastic Water Pipe HDPE Extrusion Making Machine
This qualified extrusion line is main for producting PE pressure pipes,discharge pipe line for chemical and food fields,protection and conduit pipes for electrie cables and communication wire,fishpond edge guardrail pipes etc.
Main Technical Parameters
| Model Parameters | LGSJ-110 | LGSJ-130 | LGSJ-150 | LGSJ-180 | LGSJ-210 |
| Screw diameter (mm) | 110 | 130 | 150 | 180 | 210 |
| Screw length(mm) | 2000 | 2200 | 2400 | 2600 | 2800 |
| Machine power(kw) | 22 | 30 | 37 | 45 | 55 |
| screw rotate speed (r/min) | 55-60 | 50-55 | 45-50 | 40-45 | 35-40 |
| Changer motor power(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 |
| Production capacity(kg/h) | 80 | 100 | 150 | 200 | 250 |
| Matched pelleter power (kw) | 1.1 | 1.1 | 1.1 | 1.1 | 2.2 |
| Matched crusher/washer power (kw) | 18.5/7.5 | 18.5/7.5 | 22/11 | 30/15 | 37/18.5 |
| Crusher & washers production capacity (kg/h) | 400 | 450 | 500 | 600 | 600 |
| 3+1PH380V50HZ PC Machine installed power | 60 | 80 | 100 | 120 | 140 |
Our Competitive Advantages:
1. experience:Our company have more than 15 years’ experience in designing and manufacturing the extrusion equipment; the core technology and equipment are communicating and docking with the advanced European plastics processing technology
2. Market: Our products have been sold to all over the China and exported to countries all over the world, such as Russia, Ukraine, Armenia, Azerbaijan, Uzbekistan, Kazakhstan, Italy, Romania, Australia, Turkey, Iran, Pakistan, India, Bangladesh, Indonesia, Japan, Vietnam, Mexico, Venezuela, Brazil, Peru, South Africa, Egypt, Tunisia, and so on.
3. After Sales Service: We offer turnkey project,technicians will be sent to buyer's factory for installation and commissioning of the equipmnet and training of workers;all you maintenance requirements to equipment will be replied within 24 hours.
