HDPE / PP Water Pipe Plastic Extrusion Line

HDPE / PP Water Pipe Plastic Extrusion Line
HDPE / PP Water Pipe Plastic Extrusion Line HDPE / PP Water Pipe Plastic Extrusion Line

Large Image :  HDPE / PP Water Pipe Plastic Extrusion Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month

HDPE / PP Water Pipe Plastic Extrusion Line

Description
High Light:

plastic extrusion machine

,

plastic production line



HDPE / PP Plastic Pipe Extrusion Line Single Screw Large Diameter



Quick detail:



    Condition: new

   Screw design:single screw

   Application : pipe

   Max output : 200,400,500,700,1100

   Pipe range : 200-600,400-1200,800-1800,1600-2600

   Motor power: 30/15,75/30,90/30,160/75,250/90

   Processing type : extruding machine

  After-sales Service Provided: Engineers available to service machinery overseas

  .mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port





Description:



Process Flow:


Raw material+ master batches--mixing--vacuum feeding--material dryness--single screw extruder--

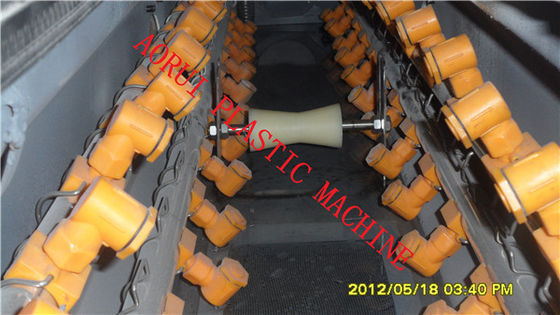

co-extrusion mould--calibrator--spray vacuum calibration tank--spray cooling water tank--belt haul-off--

single screw glue extruder--winder--winding roller forming--water cooler--cutter--pipe rack--finished product

inspecting & packing

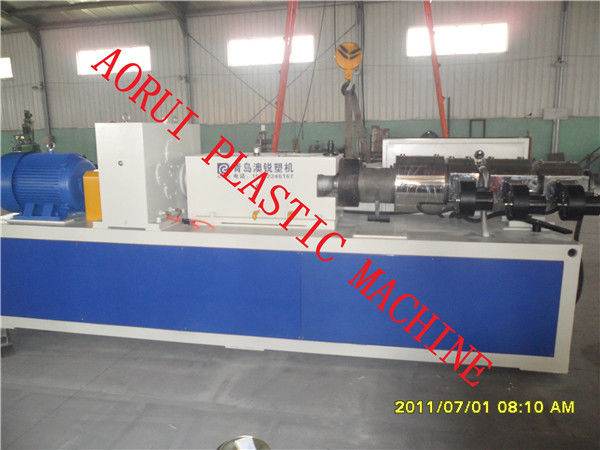

 1.Main machine:


Adopting two steps type decompression screw, with specially mixing and plasticization component, together

with high twist torque and high temperature control accuracy make 90% of recovery material can be used in

production.



2. Composite die:


Adopting composite die, two extruders unite to provide material, helix turning forming, high efficiency

compound technology ensures high product quality.



3. Scientific design of pipe wall:


Absorbing the technical essence of Europe and Korea, ensure high production efficiency and lower

material using of the condition of same circle rigidity.



4. Electrical control:


Advanced PLC computer control system, high precision temperature control module block whole color

touch displaying screen to ensure convenient, stable and dependable operation.



Electrical control system

Japan National FP2 series super large capacity PLC control system, imported inverter

And digital D. C. Speed regulator, man-machine interface dialogue to collect many digital dynamic picture,

perform speed switch between linear and non-linear speed, having stable operation and high control

precision. Long-distance data input, program revise, supervise, failure diagnose and remove can be made

by connecting the modern in terminal RS232 of this system


1.Perform the switch between linear speed and non-linear speed


2.Automatic temperature control, pipe extruding, melting glue extruding, winding and forming, synchronous

cutting and automatic following control;


3.Pipe extruding machine, temperature control, charging and speed regulation supervise;


4.Vacuum sizing water temperature watching;


5.Temperature curve displaying warning;


Melting glue extruder, temperature control, speed regulation, temperature curve displaying warning.





Applications:



This line can also produce double-wall corrugated winding pipe, double wall winding pipe, triple enhanced

winding pipe

HDPE / PP Water Pipe Plastic Extrusion Line 0



Specifications:



Item Model

Specification

(mm)

Total power (kW) /Load ratio50%

Max.output Kg/h

Outside dimensions L×W×H(m)

SKRG800

φ300-800

230

260

10×21.5×2.6

SKRG1200

φ400-1200

300

500

10×23×2.7

SKRG1500

φ900-1500

450

600

28×18×6

SKRG2200

φ1200-2200

500

700

30×20×7

SKRG3000

φ2200-3000

650

800

32×20×8





Competitive Advantage:



1.good after-service

2.spare parts are free

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality
