Product Details:
|
| Certificate: | ISO9001,CE | Output: | According To Customer's Requirement |
|---|---|---|---|
| Feature: | Good Quality | Screw Type: | Single Screw Or Double Screw |
| Pipe Range: | Maximum 2000mm | Type: | Corrugated Pipe Machine |
| High Light: | plastic extrusion machine,plastic production line |
||

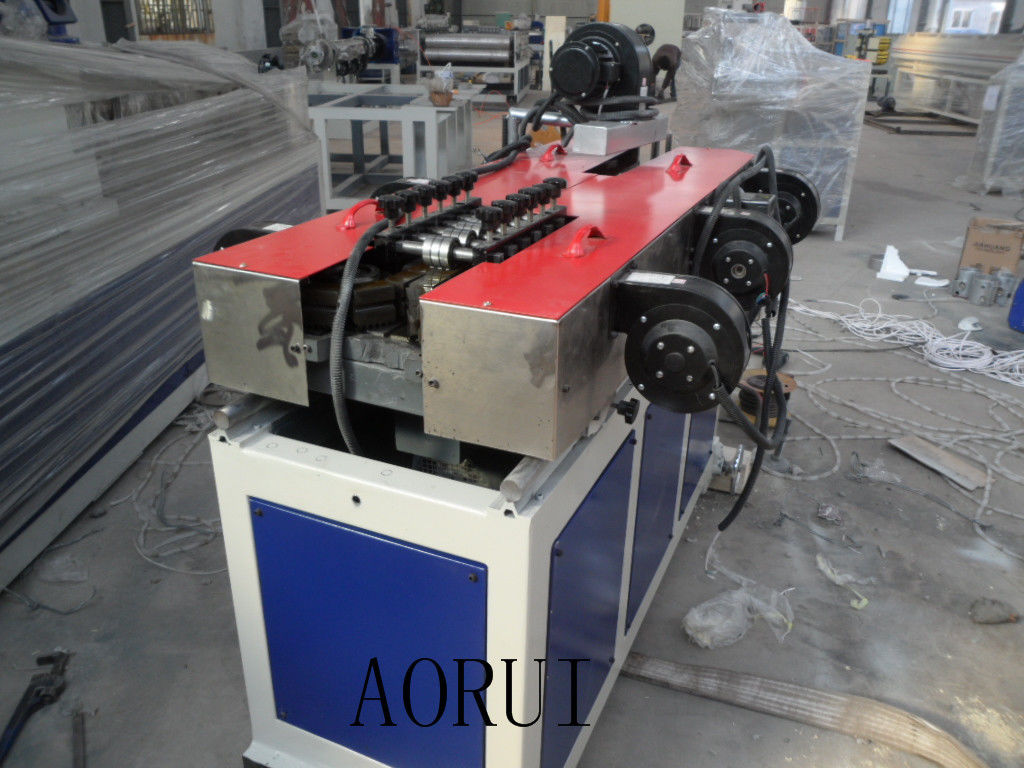

Corrugated Pipe Plastic Extrusion Machine , High Intensity Pipe Threading Machine
Quick detail:
1. High output
2. Max speed:25m/min
3. Material:PVC PE PP
Description:
Single Wall Corrugated Pipe Production Line. Application: The corrugated pipe produced by this line has the advantages of high-temperature resistance, corrosion-resistance, anti-wear and high tenacity;
the pipes are mainly used for electricity wire sleeve, wire sleeve in cars, protection wire sleeve, machine tool, food packaging machines, electrical mobiles, engineering installation, lamps and lanterns, automated instrument, etc.Characteristics: Special designed screw and mould; the convenient and reliable changing of the mould have solved the problems of easy wear of the barrel and hard foamed of the material. The production line is running fast, stably and easy to operate.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
1. alkali-resistance, the black pipe is resistant to the ultraviolet radiation.
2. Used as wire and cable passing pipe
3. high intensity, good flexibility,
Competitive Advantage:
1. We help to install and train how to operate
2. CE&ISO9001certification
