Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Power: | 55 KW |
| Certificate: | CE ISO9001 | Application: | Profile |
| Voltage: | 380 V 50HZ | Motor: | Siemens |
| High Light: | WPC Extrusion Line,Wood Plastic Production Line |
||

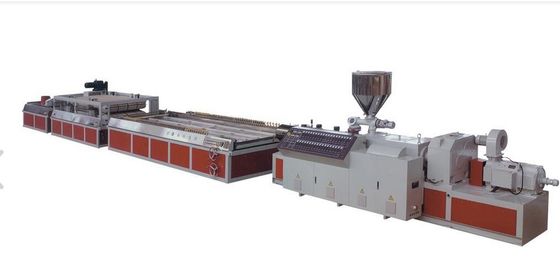

Professional Wpc Extrusion Line , Wpc Production Line For Wood Plastic Composite Sheet
Quick detail:
1. The PVC extruded profiles machine is used to produce a new kind of construction and decoration material, it is mixed by PVC, PP, PE, etc with different plant fibre, and then formed by vacuum calibrator. It is used in drilling, planing, nailing, sawing, jointing, printing and other construction method. Because of its green environment protection, waterproof, dampproof, anti-corrosion, rot-resistence, ametabolic and good fire-retardant, it can be used after recycling, and has been widely used in fields of floor, guard bar, tray, packing cases, partition board, window and door sheath, skirting line, etc.
2. Production Flow:
Powder Mixer → Spring Feeder → Extruder Machine → Mold → Vacuum Calibration Table → Hauling Off Machine→ Cutting Machine → Stacker
Description:
1. Wood Plastic Composite profile Extrusion Line
The process of wood plastic composite extrusion line is manipulable to make different profiles of the plastic and wood products. and the types of product are made at the same time of process.
As a new developed material,it is paintable,waterproof,nailable,flame resistant,sawable, and drillable as well as Digable. Which is widely used in construction,decoration in different types.
2. Decoration :
ultimate constructional projects decorating solution, with the natural look and feel of wood and the flexible durability of wood plastic composite. The resulting low maintenance Wall Panel & Blind are water-resistant, rot-proof, moss and splinter-free, yet elegantly natural and in perfect harmony with your home giving instant beauty to your lovely house.
Specifications:
| Model | SJSZ51/105 | SJSZ65/132 | SJSZ80/156 | ||
| Screw dia | mm | 51/105 | 65/132 | 80/156 | |
| Screw max. rotation speed | r/min | 40 | 34.7 | 38 | |
| Main extruder power | KW | 15 | 35 | 55 | |
| Barrel heating power | KW | 8 | 24 | 36 | |
| Central height | mm | 1000 | 1000 | 1000 | |
| Main products | Frame, Door leaf, Batten | Frame, Door leaf | |||
| Barrel heating and cooling | China heater, Force cooling by air | ||||
| Screw heating and cooling | Oil | ||||
Competitive Advantage:
1) We give you suitable suggestions according to your actual need.
2) Technical support: long available life
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
