Product Details:
|
| Brand Name: | Aorui | Port: | Qingdao |
|---|---|---|---|
| Place Of Original: | Shandong , China | Frequency Control: | ABB |
| Motor: | Siemens | Automatic Grade: | Fully Automatic |
| High Light: | WPC Extrusion Line,Wood Plastic Production Line |
||

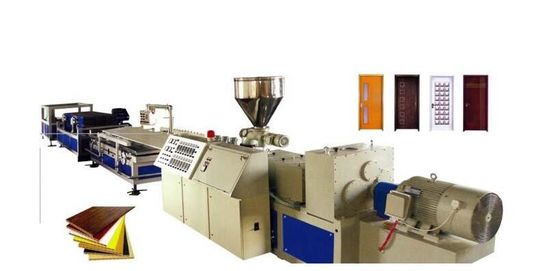

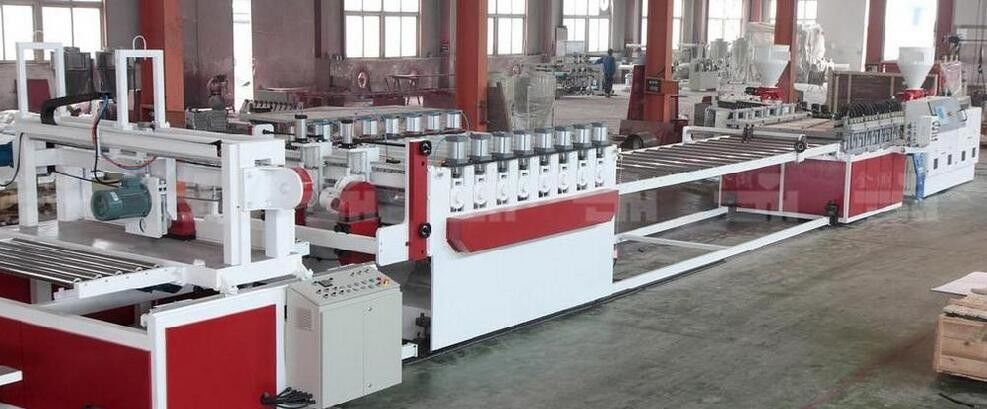

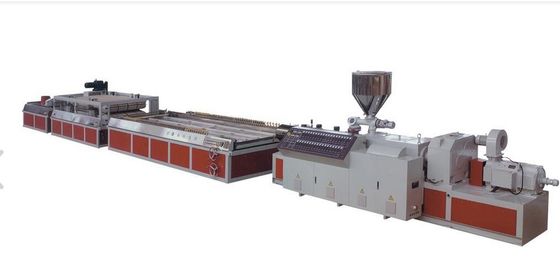

Wood Plastic Composite Production Line / WPC Board Sheet Profile Extruder Machinery
Quick detail:
1. conical twin screw extruder is a highly efficient agglomeration and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life. Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.
2. · High production capacity and high velocity extrusion on the high quality base;
· Low temperature plasticization design guarantees high quality product.
· Two stages styles unitary design, reinforcing plasticization capacity guaranteed high performance and high velocity extruding.
· the particular kind of barrer, BM type synthetical blending design guaranteed mixing efect
· High twisting force output, the huge thrust bearing;
Description:
1. WPC composite profile making machine can produce all kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, faciliry of ourside park, floor etc. Output profile is Wood Plastic Composite(WPC) or Plastic UPVC.
WPC Introduction:
As a new material to replace wood, wood plastic composite is widely used in fields of building decoration and outdoor building materials, such as edge and corner lines, fence of flowers nursery, skirting board, ceiling line, blind window, stair railing, decorative wall board, outdoor pavilion and so on. Most interior and exterior decorative building materials can be made by using wood plastic composite.
Particularly, wood plastic composite can be used in kitchen and washing room for its waterproof and fireproof functions which the raw wood does not have.
At present, wood plastic composite has already drawn extensive attention in the world and is praised as new material which will have board developing prospect.
Materials: PVC/PP/PE + Wood Powder or PVC, PE, PP.
Specifications:
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-92 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max. Rotational speed of screw(rpm) | 45 | 45 | 45 | 45 | 34.7 | 34.7 | 34.7 |
| Main motor(kw) | 15 | 18.5 | 22 | 30/37 | 55 | 81 | 110 |
| Capacity(kg/h) | 110 | 125 | 150 | 260 | 400 | 400 | 800 |
| Central height(mm) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimension(L*W*H)(M) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 5.0*1.6*2.6 | 6*1.6*2.5 |
Technical and after-sales service:
The supplier the following technical and after-sales service commitment
A) Provide on-site installation guide;
B) Responsible for the commissioning of equipment;
C) Responsible for the buyer's personnel mount guard before the operation and maintenance training;
D) One year free warranty (due to the buyer's improper operation caused by damage charge costs), and ensure the supply of spare parts for a long time, only receive the cost.
E) Provide technical advisory services for a long time
