Fully Automatic PVC Double Pipe Machine, PVC One Out Of Two Pipe Production Line

Brand Name:	AORUI
Model Number:	SJSZ51/105
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA ISO9001

Model Number:

SJSZ51X105

Automatic Grade:

Fully Automatic

Screw Design:

Double Screw

Port Of Shipment:

Qingdao

Original:

Shandong

Screw & Barrel Material:

38Cr MOAIA

Delivery Time:

30 Days

Warranty Time:

1 Year

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

Fully Automatic PVC Double Pipe Machine

120kg/H Plastic Production Line

Extrusion 40mm Pipe Plastic Extrusion Line

Product Description

Plastic PVC Pipe Extrusion Line / PVC Double Pipe Extrusion Production Line / PVC Twin Pipes Machine

Quick detail

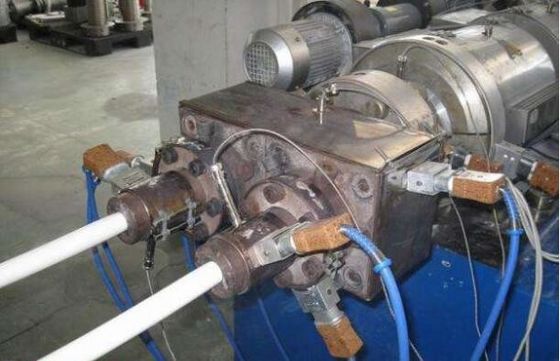

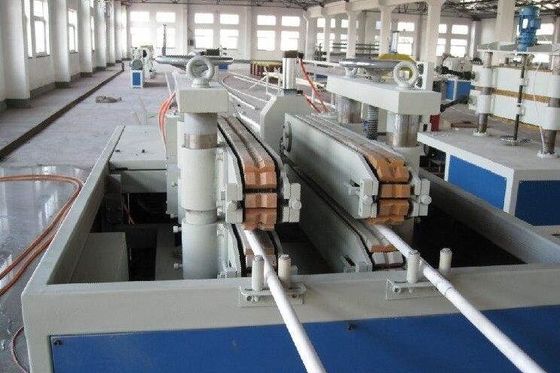

1.First class pipe die was designed with many years experience. Perfect twin pipe vacuum sizing system.Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device. Optional length set and accurate adaption stacker.

2.One die double output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop.Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjusting speed and save power consumption
Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.

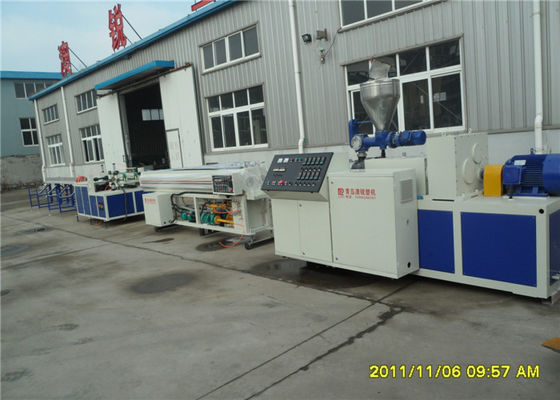

3.This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.

Technical parameter:

Model	Extrusion type	Screw diameter (mm)	Pipe range (mm)	Capacity (kg/h)	Main motor power (kw)	Line length (m)
GF40	Double-out	51/105	16-40	80-120	18.5	22
GF63	Double-out	65/132	16-63	120-250	37	25

Application of pvc double outlet pipe production line:

PVC pipe extruder machine / PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
