Product Details:
|
Brand Name: | Aorui | Original: | Shandong , China |
---|---|---|---|
Automatic Grade: | Fully Automatic | Screw&Barrel Material: | 38Cr MOAIA |
Type Of Extruder: | Twin Screw Extruder | Delivery Time: | 30 Days |
Voltage: | 380V 50HZ | Warranty: | 1 Year |
High Light: | Reinforced Hose Plastic Extrusion Line,Soft Pvc Fiber Plastic Extrusion Line,38Cr MOAIA Screw Plastic Extrusion Line |

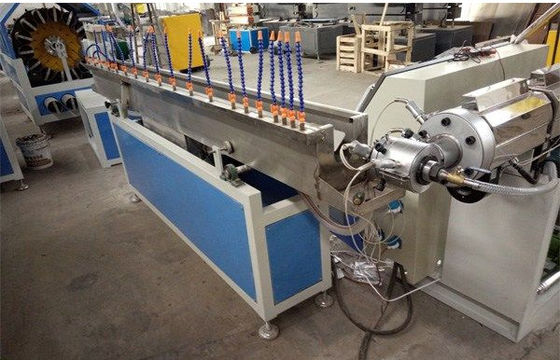

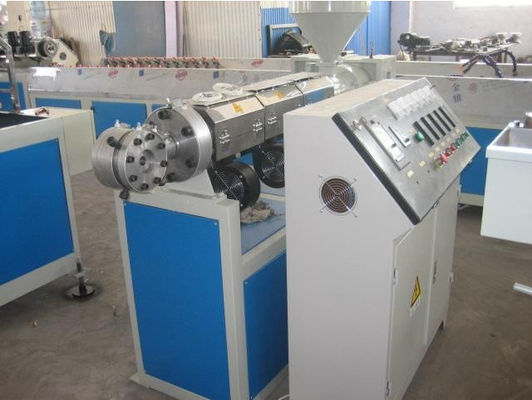

PVC Fiber Reinforced Soft Pipe Extrusion Line / pvc Fiber Reinforced Hose Extruder Production Line
Description of pvc fiber reinfoced pipe production line:

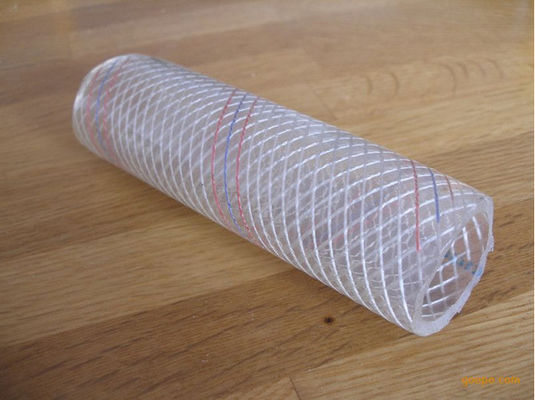

1. This line is designed to produce PVC fiber reinforced hose,the wall of which is three layers,outer and inner layer are soft PVC hose,middle layer is Terlene fiber network,which has good chemical and physical property,it is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine,chemical,agriculture irrigation,gas and building.
2. pvc fiber reinforced soft pipe making machine/extrusion line : Process flow
PVC powder + additive --- mixing---spring feeder---twin screw extruder---mould and calibrator---vacuum forming machine---haul-off machine---cutting machine---discharge rack
3. PVC fiber reinforced pipe production line has a good market in worldwide. We can supply PVC fiber reinforced hose production line with competitive price and high quality.
Technical parameters of pvc fiber reinforced pipe machinery:
Model | Extrusion type | Screw diameter (mm) |
Pipe range (mm) |
Capacity |
Main motor power (kw) |
Line length (m) |
GF40 | Double-out | 51/105 | 16-40 | 80-120 | 18.5 | 22 |
GF63 | Double-out | 65/132 | 16-63 | 120-250 | 37 | 25 |
Application:

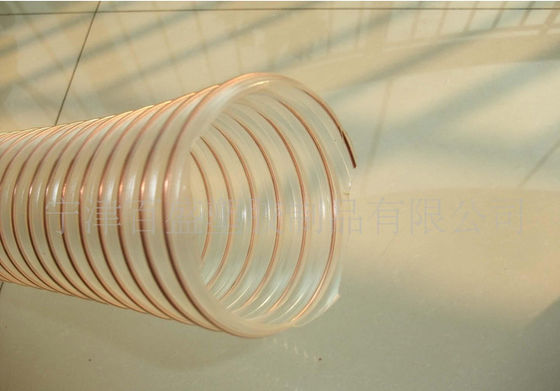

PVC fiber reinforced hose production line is mainly used to manufacture fiber-reinforced hose for fluid conveying.PVC fiber reinforced pipe can be used as pipelines to conveying air, water, gas, oil and other kind of fluid and gas.
Our machine's advatanges:
1. High output
2. high performance
3. operation stable
