Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ65x132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

Plastic Pipe Extrusion Line , PVC Fiber Reinforced Pipe Production Line , PVC Pipe Machinery

Description
Condition: New Port Of Shipment: Qingdao
Screw Design: Double Screw Certificate: CE ISO9001
Voltage: 380V 50HZ Warranty: 1 Year
Brand Name: Aorui Application: PVC Fiber Pipe
High Light:

PVC Fiber Reinforced Pipe Extrusion Line

,

Double Screw Plastic Extrusion Line

,

14MM Pipe Plastic Extrusion Line

PVC Plastic Pipe Making Machinery, PVC Garden Soft Hose Production Line , PVC Hose With Fiber Reinforced Machine



Features of PVC Fiber Enhancing Soft Pipe Machinery:

1. It adopts special screw and barrel,ensuring plasticizing quality and high transparency;

2. Special designed extrusion die head has layer control,each layer thickness can be adjusted freely

3. It adopts winding machine with frequency regulator for even winding and high speed;

4. It adopts automatic coiler,ensuring regular and beautiful coiling of the pipe .

5. The main motor, machine and tractor operators using variable frequency control system, easy to adjust, reliable to run, stable, low energy consumption.

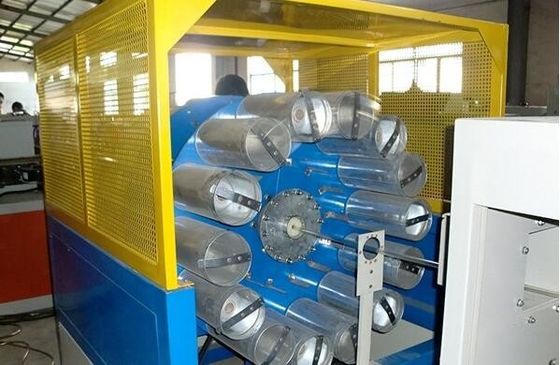

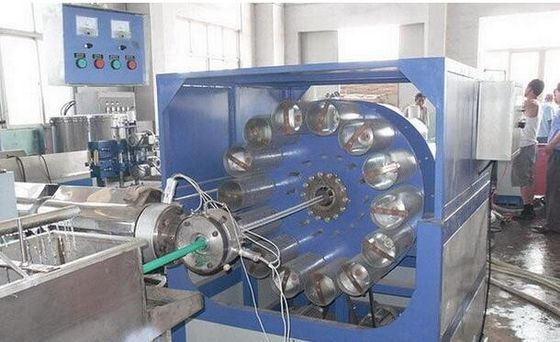

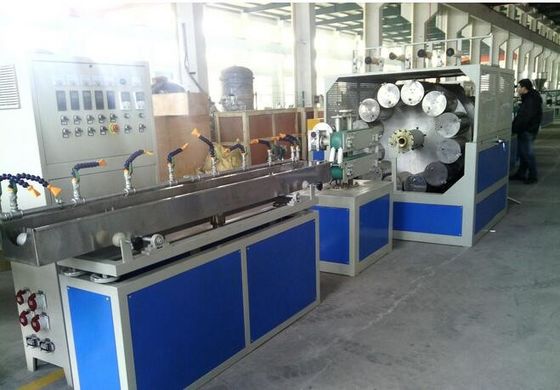

6. The screw of extruder with special design, better effective plasticization of raw materials, stable production.The PVC fiber reinforced hose extrusion line includes a single screw extruder, a tractor, a forming machine, reinforcing mesh knitting machine, water spray coolers, a cutter, and a winder. The PVC fiber reinforced hose extrusion line can be designed in accordance with customer demand.



Technical parameters of pvc fiber reinforced pipe machinery:



SPECIFICATIONS FOR OUR MAIN MODELS
Model Screw Diameter(mm) L/D Screw
Material
Main Motor(KW) Total Power(KW) Central Height(mm) Pipe Diameter(mm)
SJ-45/55 45/55 30 38CrMnAl 7.5/11 35 1000 6-14
SJ55/65 55/65 30 38CrMnAl 11/15 46 1000 16-38
SJ75/90 75/90 30 38CrMnAl 18.5/37 80 1000 50-102



Application of pvc fiber reinforced pipe:

PVC fiber reinforced hose also named as PVC net hose, commonly called as snake hose, suitable for pressure or corrosive gas, liquid transporting, widely used in machinery, coal, petroleum, chemical industry, agricultural irrigation, construction, civil and other fields. Now also used in a large number of gardens, lawn watering.



Competitive advantages of pvc fiber reinforced pipe production line:

1. High efficient, easy in installation and maintain.

2. Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.

3. Running in of high automatization and intellectualization, no pollution.
