CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making

CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making
CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making

Large Image :  CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJSZ80/156
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

CE PVC UPVC Pipe Plastic Extrusion Line Production Line Water Supply Drain Pipe Making

Description
Original: Shandong , China Certificate: CE ISO9001
Plastic Processed: PVC Powder Port Of Shipment: Qingdao
Application: PVC Pipe Brand Name: Aorui
Payment Terms: TT Or L/C Motor: Siemens
High Light:

PVC UPVC Pipe Plastic Extrusion Line

,

Drain Pipe Plastic Extrusion Line

,

11KN Plastic Extrusion Line

PVC UPVC Pipe Production Line / Water Supply Drain Pipe Making Machine / 16-630mm Plastic Pvc Pipe Machinery



Description:

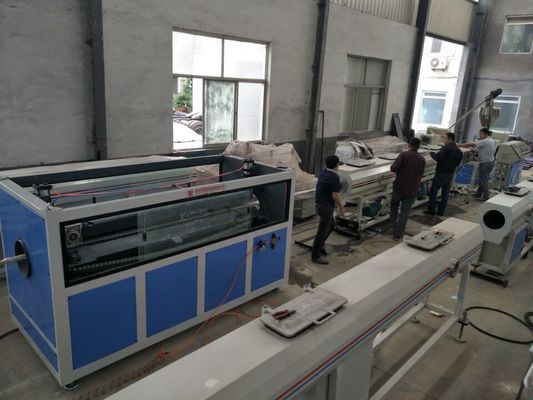

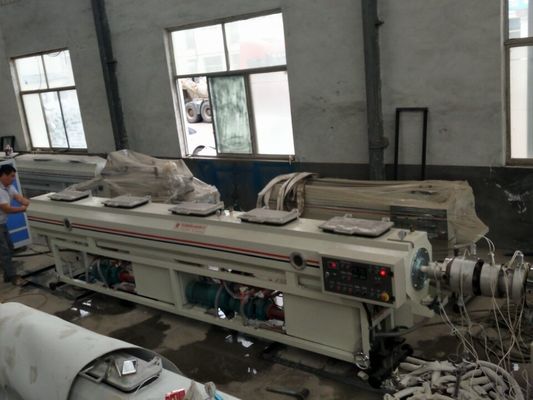

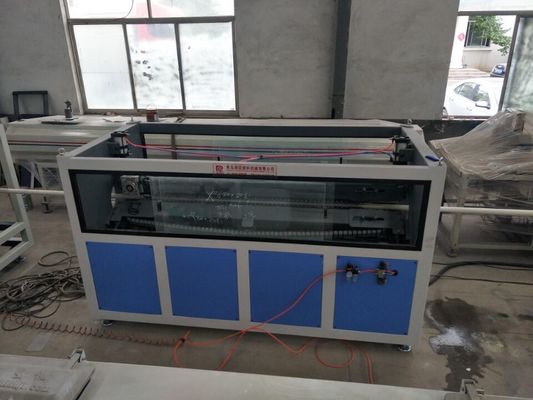

1. This Pipe Production Line is composed of the conical twin-screw extruder, vacuum forming table, tractor, cutter, turning rack, etc.
- The extruder and the tractor adopt imported AC frequency conversion device.
- The vacuum pump and traction motor are also of high quality.
- There are several traction modes such as two claws, three claws, four claws, six claws, etc.

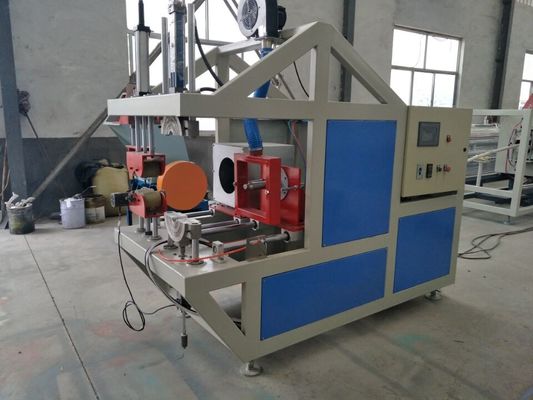

- Saw cutting or planet cutting is selectable. Length recording and thickness increasing devices can be attached.

2. Process flow:

PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → discharging rack



Technical parameter

Item/Model GF63 GF110 GF160 GF250 GF400 GF630 GF800
Diameter range (mm) 16-63 16-110 50-160 50-250 110-400 315-630 450-800
Claw number of haul off (pcs) 2 2 2 3 4 6 8
Pulling force (KN) 6 8 11 20 30 40 50
Pulling speed (m/min.) 15 12 8 9 4 2 2



Application:

It is mainly used in the agricultural water supply and drainage, water supply and drainage construction, cable supporting, thickness of PVC plastic pipe.



Our machine's competitive advantages :

1.PLC or temperature control

2.High extrusion capacity, low melting temperature

3.Special screw design to ensure high efficiency and high output

4.High hardness, low noise helical gear design brings reliable performance and long service life

5.DC speed control or frequency conversion speed regulation is optional



Shipping Details:
