PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line

PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line
PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line

Large Image :  PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ45/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

PE Single Wall Corrugated Pipe Production Line , Corrugated Drain Line

Description
Condition: New Type Of Extruder: Single Screw Extruder
Voltage: 380V 50HZ Delivery Time: 30 Days
Warranty Time: 12 Months Brand Name: Aorui
Automatic Grade: Fully Automatic Port Of Shipment: Qingdao
High Light:

Corrugated Drain Plastic Extruder Machine

,

Corrugated Pipe Plastic Extruder Machine

,

15m/Min Plastic Extruder Machine

Description of pe single wall corrugated pipe production line:

1. Production line specification 4-58mm.Through the corresponding mold molding inside and outside of a smooth, uniform corrugated pipe products.

2. High-speed PE and PP single-wall corrugated pipe production line adopts gear transmission module and USES cooling water circulation for cooling. The production speed can reach up to 10-15m/min. Through the corresponding mold, the product of bellows with smooth inside and outside and even ripples can be formed at one time.

3. The structure design of special screw and mould is reasonable, the replacement of mould is convenient and reliable, the problem of easy wear of screw barrel and difficult forming of material is solved, the production line is fast, the operation is stable, the control is simple and easy to operate.

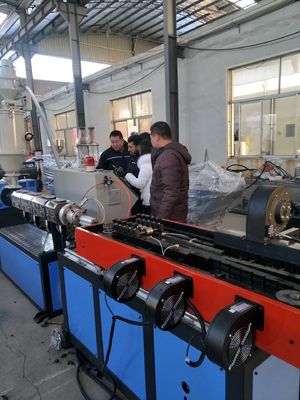

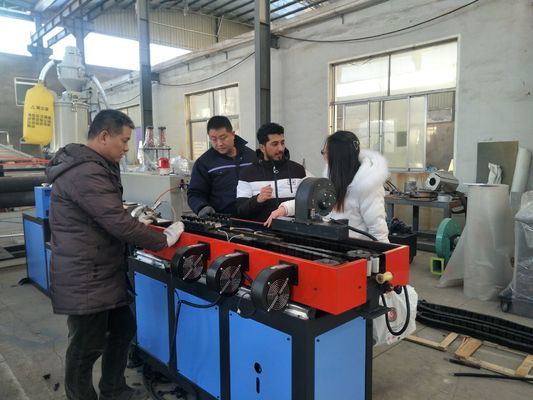

4. The pe single wall corrugated pipe production line is equipped with single/double screw extruder, bellows forming machine, tube-tire mould, air-cooling device, counter and coiler, which can continuously extrude and shape various sizes of bellows.

Technical parameters of pe single wall corrugated pipe production line:

Item/Model GF63 GF110 GF160 GF250 GF400 GF630 GF800
Diameter range (mm) 16-63 16-110 50-160 50-250 110-400 315-630 450-800
Claw number of haul off (pcs) 2 2 2 3 4 6 8
Pulling force (KN) 6 8 11 20 30 40 50
Pulling speed (m/min.) 15 12 8 9 4 2 2


Application:

Single wall corrugated pipe has such features:high temperature resistance, corrission resistance, wear resistance, high strength.

It is widely used in the fields of electric threading pipe, automobile threading pipe, casing, machine tool, packaged food machinery, electric locomotive, engineering installation, lamps and lanterns, automation instruments and meters, etc.



Competitive advantages of single wall corrugated pipe machinery:

1. Smooth inner and outer wall.

2. The cost of mould is low, can change mould in short time, easy operation, high effiency, easy adjustable.


Our company competitive advantages :
1. Qingdao Aorui Plastic Machinery Co., Ltd. is a high-tech enterprise specializing in the production of plastic processing complete sets of equipment and various plastic pipe moulds, integrating scientific research, development, manufacturing, sales and service.
2. The company integrates the rich design and manufacturing experience accumulated by the sophisticated technical team over the years, with advanced production equipment technology, strict quality assurance measures, scientific management methods, fast and efficient service, and constantly blaze new trails to meet the needs of customers. . Products sell well all over the country and exported to many overseas countries and regions, won the trust of all parties, the product is in the same industry leading position in the country.
3. The company is located in the beautiful and rich Jiaozhou Bay, land, sea and air transport developed, beautiful scenery, rapid traffic, welcome new and old customers at home and abroad to work together to create brilliant tomorrow.
