Automatic Surgical Dust Face Mask Making Machine Disposable Mask Production Machine

Brand Name:	Aorui
Model Number:	SJ45/50/55/65/90
MOQ:	1 SET
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao city

Certification:

CE ISO9001

Brand Name:

Aorui

Automatic Grade:

Fully Automatic

Warranty:

1 Year

Place Of Original:

Shandong, China

Package:

Film

Voltage:

380V 50HZ

Screw Design:

Single Screw

Packaging Details:

Film package

Supply Ability:

10 sets per month

Highlight:

meltblown machine

nonwoven fabric making machine

Product Description

Fully Automatic SJ Series Meltblown Extruder , PP Woven Facric Making Machine For Mask

Product Description:

1. The melt-blown nonwoven process uses high-speed hot air to draw a thin stream of polymer melt extruded from the spinneret of the die, thereby forming ultra-fine fibers and condensing on the curtain net or roller, and relying on itself It becomes a nonwoven fabric.

2. In order to solve melt-blown fabric shortage as well as face mask in the market, our company developed small footprint automated melt-blown fabric production line. The line is flexible design and able to change different melt-blown tooling to produce different size and density of fabric to match with multiple standards of face mask.

Technical parameters:

Extrusion volume	200kg~500kg/day (can be adjusted based on process setting)
Line Footprint	W2000* L5500* H2300mm
Machine weight	6 tons
Melt-blown tooling	Fabric width 600mm
Melt-blown fabric	Servo controlled
Raw material	PP (medical standard)
Conveyor speed	60m/min
Polymer allowed pressure	15Mpa
Melt-blown temperature	240 °C
Melt-blown nozzle diameter	0.2~0.4mm
Air-blower volume	3m3 /min
Compressed air heating	250-300 °C
Ball screw extrusion	Single axis: D65
Compressed air speed	N550m/s
Melt-blown silk diameter	1-10 um

Market analysis
As we all know, the melt-blown fabrics is in huge demands by the market, and it's shortage now in all over the world. Now in China, the mask producer need to pay around US$70,000 to get 1 ton melt-blown, and the costs is still keeping rise up.
Meanwhile, in the world the number of mask production line going up more than one million line this year but the suppler for melt-blown is not too much. The fact is, we can get the raw materials PP for melt-blown much more easier than melt-blown fabric itself. So it is really a good chance to invest with the melt-blown production line now, you will get back the investment in very short time and will have very good profits before the corona virus stop spreading.

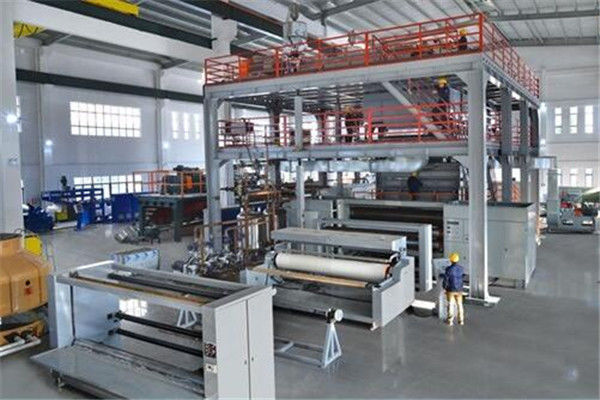

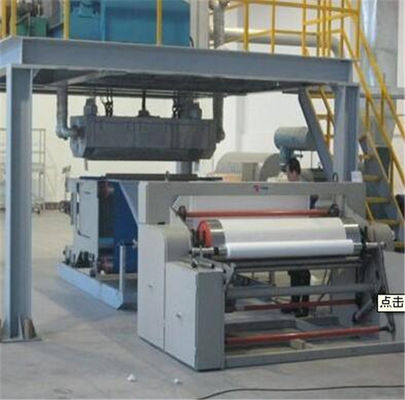

Machine pictures:

Automatic Surgical Dust Face Mask Making Machine Disposable Mask Production Machine 0
