Product Details:
|
| Model Number: | SJ65 | Screw Channel Structure: | Deep Screw |
|---|---|---|---|
| Width Of Meltblown: | 600mm | Line Speed: | 6-70m/min |
| Application: | Face Mask Middle Layer | Delivery Time: | 20 Days |
| Trademark: | Aorui | Original: | Qingdao City |
| High Light: | meltblown machine,nonwoven fabric making machine |
||
High Capacity Melt-blown Production Line , Meltblown Nonwoven Fabric Making Machine For Mask
Equipment List & Quantity
| No. | Equipment Name | Quantity | Remark |
| 01 | Dryer | 1 Set | |
| 02 | Vacuum feeder | 1 Set | |
| 03 | Single screw extruder | 1 Set | |
| 04 | Dryer | 1 Unit | |
| 05 | Meltblown die | 1 Set | |
| 06 | Spinneret plate | 1 Unit | |
| 07 | Metering pump | 1 Unit | |
| 08 | Dual column & dual-position screen exchanger | 1 Set | |
| 09 | Dual-position hydraulic workstation | 1 Set | |
| 10 | Connector | 1 Set | |
| 11 | Auxiliary of meltblown | 1 Unit | |
| 12 | Web forming machine | 1 Unit |
Description of small scale meltblown making machine:
1. The PP meltblown nonwoven production line is a polymer melt extruded from a screw extruder.
The polymer is extremely stretched by high-speed hot air or other means to form very fine short fibers, which are aggregated to A web is formed on a roller or a screen curtain, and is finally reinforced by self-adhesion or thermal bonding.
2. It's unique properties are widely used in mask filter materials, thermal insulation filling materials, medical health materials, wiping materials, etc.
3. Production Process:
Raw material feeding----melting-----filtering----metering----air heating----spraying---web forming----winding(with cutting)
Technical parameters for meltblown making machine:
| Model | LMSB-800 | LMSB-1600 | LMSB-2400 | LMSB-3200 | LMSB-4000 |
| Model of extruder | SJ-55 | SJ-90 | SJ-110 | SJ-135 | SJ-150 |
| Weight of products | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 | 8-80g/m2 |
| Max. speed | 50-200m/min | 50-200m/min | 50-200m/min | 50-200m/min | 50-200m/min |
| Daily output | 300-400kg | 1500kg | 2500kg | 4000kg | 6000kg |
Application of meltblwon machinery:
PP meltblown fabric materials are widely used in masks filteration and protection lives by it's unique properties, thermal insulation filling materials, medical health materials, wiping materials, etc.
Advantages of pp nonwoven fabric meltblown making machine:
Meltblown cloth equipment has stable running performance, high output and high efficiency. The production of non-woven fabrics is uniform, strong, breathable, non-toxic and tasteless, and meets environmental protection standards.

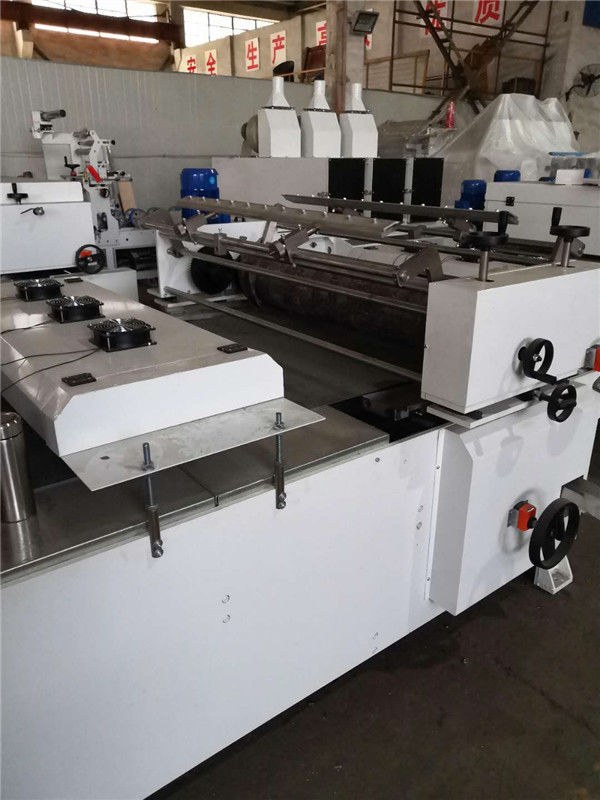

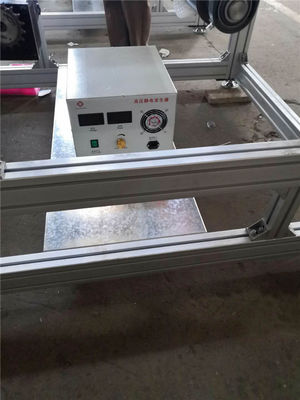

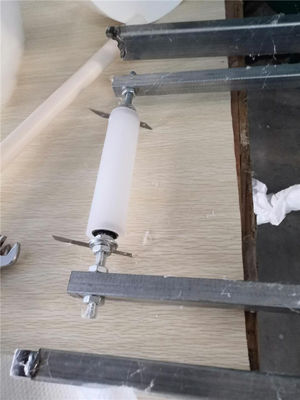

Machine display:
