Product Details:
|
Model Number: | SJSZ80X156 | Screw Number: | Two |
---|---|---|---|
Automatic Grade: | Fully Automatic | Machine Name: | Extruder |
Place Of Original: | China | Inverter Brand: | ABB |
Certitficate: | CE Certificate | Package: | Film Package |
High Light: | Conical Twin Screw Extruder,PVC WPC Twin Screw Extruder,Two Screw Twin Screw Extruder |
Hign Capacity Conical Twin Screw Extruder For PVC WPC Pipe Profile Extrusion
Quick detail
1.Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate&sheet, and pelletizing.
2.The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time.
3.Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system
Description:
Main Features of china plastic twin screw extruders:
Twin-screw extruder/conical twin-screw extruder/parallel twin-screw extruder
1)Bimetal screw and barrel, nitrided and polished, chromium plated, special treatment.
2) Parallel twin-screw feeder, powerful and high efficiency.
3) Vertical integrated gearbox, more powerful and more stable.
4) High output, can be 40-1100k/h
5) Various of models for choosing, suitable for making different products.
Main Technical Parameter
SPECIFICATIONS FOR Conical Twin-screw Extruder | ||||
Extruder model | Max.output (kg/h) |
Total power(kw) | ||
GSZ45/100 | 40-80 | 15/18.5 | ||
GSZ51/105 | 80-110 | 18.5/22 | ||
GSZ55/110 | 120-150 | 22/30 | ||
GSZ65/132 | 280-350 | 37/45 | ||
GSZ80/156 | 380-450 | 55/75 | ||
GSZ80/173 | 500-650 | 75 | ||
GSZ92/188 | 700-850 | 110/132 | ||
GSZ95/196 | 1000 | 132/160 |
Application:
Conical twin screw extruder can be widely used for different PVC plastic products extrusion. Combined use with different plastic auxiliary machines, it can be used for the PVC pipe, PVC profile, PVC board, PVC sheets and PVC pelletizing.special designed conical twin screws designed, which is perfectly good for the PVC extruding.
Our machine competetive advantages:
Stable running
All electric parts are famous brand
Easy to operate

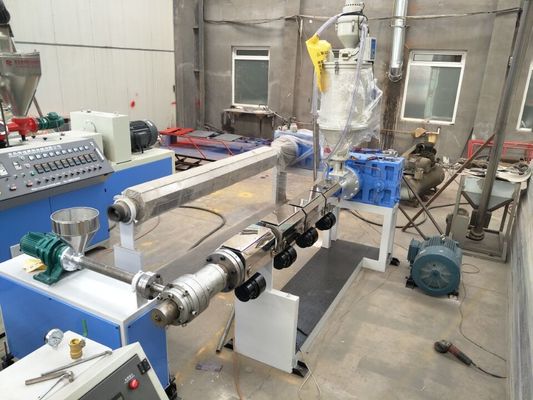

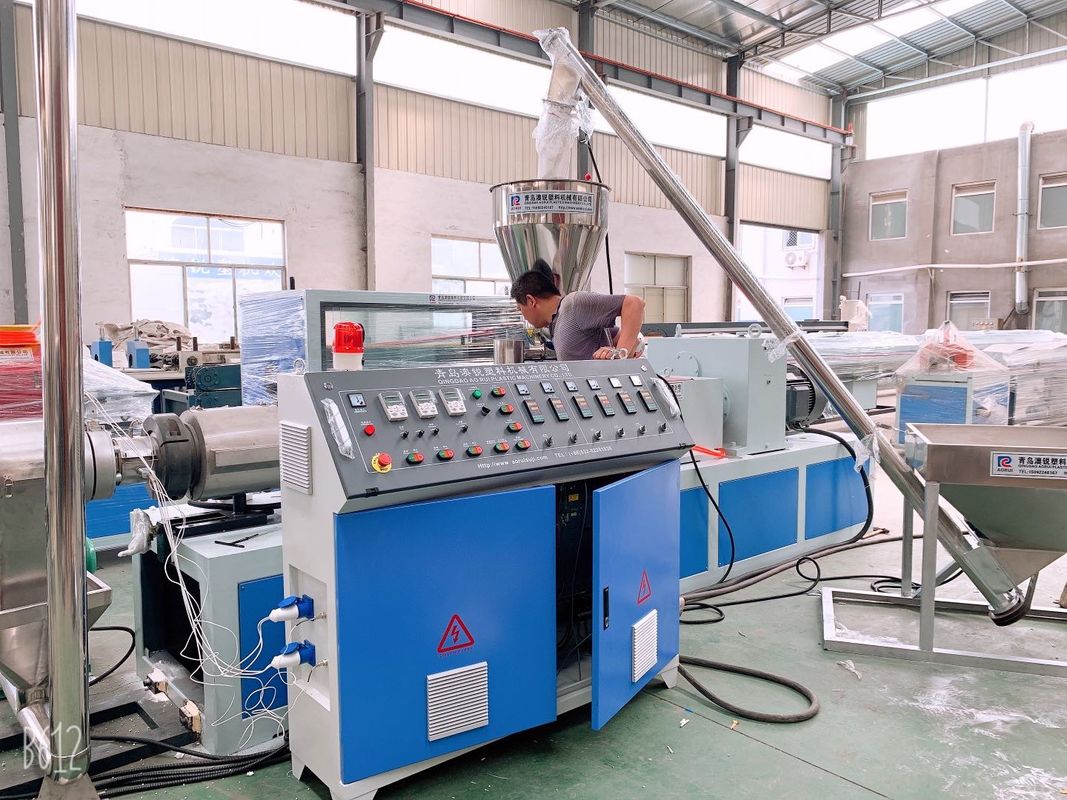

Machine display:
