Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw

Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw
Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw

Large Image :  Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE, UL, CSA, ISO9001
Model Number: SJSZ80/156
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiation
Packaging Details: Fumigation wood,film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 Sets per month

Double Screw PVC WPC Foam Board Machine 80m3/Min 5.5kw

Description
Condition: New Plastic Processed: Wpc
Screw Design: Double Screw Screw Material: 38Cr Moaia
Automatic Grade: Fully Automatic Warranty: 1 Year
Voltage: 380V/3P/50HZ Place Of Original: China
Brand Name: Aorui Certificate: CE Certificate
High Light:

PVC WPC Foam Board Machine

,

Double Screw WPC Foam Board Machine

,

80m3/Min WPC Foam Board Machine

WPC Wood Composite Plastic Sheet Machine , PVC WPC Foam Board Machine


Quick detail of wpc foam board machine:

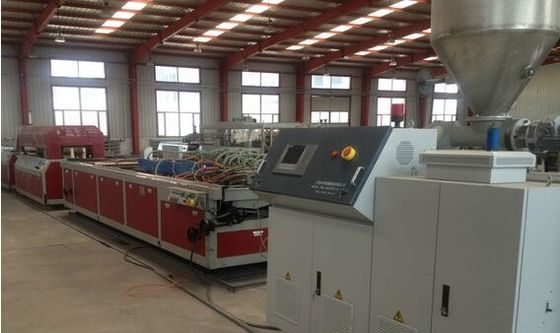

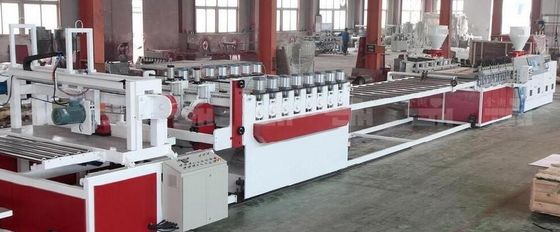

1. pvc wpc foam board machine composed of Conical twin screw extruder, board mould, sizing table, cooling bracket,tractor, cutter and other auxiliary machine.

2. Extruder adopt specical design screw, production line adopt import electrical parts, such as Siemens motor, ABB inverter, Schneider and other famous brand parts. This machine has high performance, long service life.


Description of pvc foam board machine:

1, Conical double screw extruder SJSZ-80/156
A) Output: 300-400kg/h
B) Transmission system:
High torque output vertical reducer gear box
Structure: Vertical
Provided with outside-circulation cooling system
Imported thrust bearing and high-torque output
Material of Gear: 20CrMnTi, with gear grinding technical treatment and cementite
2. Mold
A) Structure: Special design for PVC WPC board
B) Width of die: 1400mm
C)Thickness: 12-20mm
D) Material: 5CrNiMo, high quality alloy
3, Vacuum calibrating and forming table
Max. Calibrating width: 1450mm
Calibrating table length: 2000mm
Vacuum pump power: 5.5kw*2 units
Max. Exhausting volume: 80m3/min
Water pump power: 4kw
4, Cooling bracket
A) Total length of roller bracket 5000mm
B) Cooling Roller
Diameter: Ø 63mm
Length: 1320mm
5, Haul-off unit
Max. Pulling width: 1450mm
Max pulling thickness: 20mm
Pair roller qty: 7 pairs
Driven motor power: 5.5kw


Specifications of wpc foam board machine:

Model

SJSZ80/156,SJSZ92/188

usage

Decorative,

raw material

recycled PVC,wood powder, additive material,etc

product size

width:1220mm,thickness:5-30mm,length:2440mm

Extruder feature

Special designed extruder

wood powder ( wood fiber)

high volume of addition up to 50~75 percent

Plastic proceed

PVC,wood plastic composite

Auxiliary machine

Laminating machine,transferring machine,

Product type

Building Template,furniture board,kitchen board,bathroom board,


Applications:
Architecture: Such as building wall board, decoration board, housing, office, public building interlayer, commercial decoration shelf, non-dust room board, ceiling plate, etc.
Advertisement: Such as screen printing, computer lettering, ad board, etc.
Industry: cabinet board, chemical industry antisepticizing project, thermoforming for refrigerator, for temperature keeping for environment protection, etc.
Transportation: Such as steamship, aeroplane, carriage, train compartment, roof shed, case core layer, inner pholster, etc.



Competitive Advantage:
1. Warranty for machinery: 12 months for quality.

2. Technical service and support:forever.

3. The seller will dispatch engineer to the buyer’s factory for installation and training till the buyer’s workers can operate the machines independently
