Product Details:
|
Model Number: | SJSZ80X156 | Screw Design: | Double Screw |
---|---|---|---|
Brand Name: | Aorui | Place Of Original: | China |
Warranty Time: | 1 Year | Certificate: | CE Certificate |
Voltage: | 380V 50HZ | Automatic Grade: | Fully Automatic |
Condition: | New | ||
High Light: | WPC PVC Foam Board Extrusion Line,Extruded PVC Foam Board Extrusion Line,380V WPC Foam Board Machine |
PVC Twin Screw Extruder Foam Board Machine , WPC Foam Board Extrusion Line
Quick detail of pvc board manchinery:
1. The serise extruders with appropriate diemould and auxiliary machine can directly convert thermoplastic espical pvc powder into pipe, plate sheet, film and profile, and also provide function of modefling and pelleting, but twin screw extruder need work with different downstream machines in the whole production line.
2. The extruders are derived by DC motor with a thrusters to regulate. It is also equipped with the over-load protection and stoppage alarming system. The screw's core and the outside of barrel is cooled by ciculation of oil, it includes vacuum venting and forced feeding.
Description of PVC Free Foam Board Production Line:
1. PVC/WPC foam board extrusion line used for PVC WPC foam board, with advantages of steady capacity and low energy conservation. Using international advanced CAD design software, 38CrMoAlA alloy steel with superior quality and coating metal on surface, special mixing material function and high capacity of screw and barrel.
2. Cooling system of screw core uses constant temperature system controlled by hot oil, so that material can be plastified well; and barrel uses vacuum exhaust type, so that moisture content can volatilize fully and keep product quality.
3.Driving motor with advantages of steady output and large torque, and it also uses ABB or England Eurotherm speeder with the advantages of large extrusion quantity and high-efficiency.
4. This production line is designed according to international latest technology, mixed PVC with plant fiber symmetrically. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. The
wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in foam board.
Specifications of wpc foam board machine:
Model |
SJSZ80/156,SJSZ92/188 |
usage |
Decorative, |
raw material |
recycled PVC,wood powder, additive material,etc |
product size |
width:1220mm,thickness:5-30mm,length:2440mm |
Extruder feature |
Special designed extruder |
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
Plastic proceed |
PVC,wood plastic composite |
Auxiliary machine |
Laminating machine,transferring machine, |
Product type |
Building Template,furniture board,kitchen board,bathroom boa |

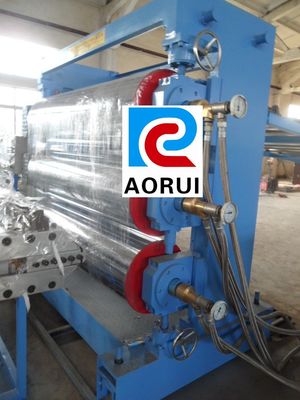

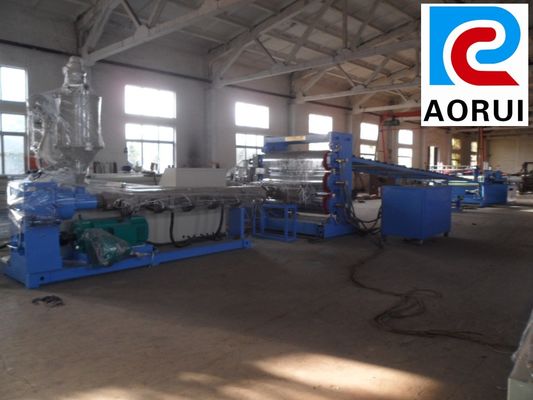

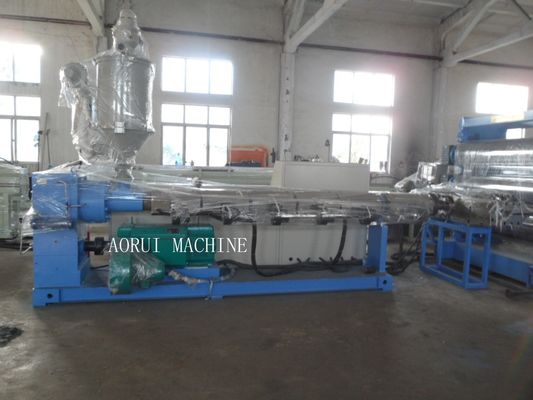

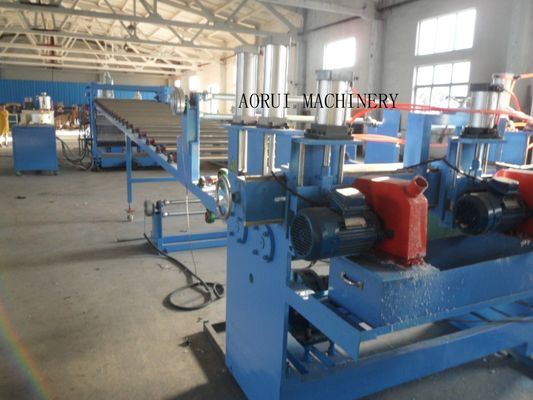

Machine display:
