PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder

Certification
China QINGDAO AORUI PLASTIC MACHINERY CO.,LTD1 certification
Customer Reviews
The sales have good service, it brings me a good experience. We import 5 sets extruders from this company, the extruders have good quality and long service life. I'd like to cooperate with this company for long time.

—— Andrew

The pvc board extrusion machine is good quality , it is beautiful and the output is stable , this is a reliable company

—— Albert

This machine is very good , and the after-saes service is good. The pvc board machine is easy to operate and the output is stable

—— Nancy

I'm Online Chat Now

PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder

PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder
PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder
PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder

Large Image :  PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ-65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per month

PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder

Description
Condition: New Screw Design: Single Screw
Place Of Original: Qingdao City Raw Material: Pe
Voltage: 380V 50HZ Brand Name: Aorui
Warranty: 1 Year Control System: PLC
Temperature Controller: Omron Application: Corrugated Pipe
High Light:

Plastic Extrusion Equipment

,

Plastic Extruder Machine

PVC Double Wall Corrugated Pipe Extrusion Line , Double Wall Corrugated Pipe Extruder



Quick detail:

 Pipe material: PVC

 Type: pipe production line

 Voltage: 380V

 Condition: New

 Application: pipe

 Certification: CE UL CSA

 Screw design: double screw

 Pipe diameter: 50mm 63mm 75mm 90mm 110mm 125mm ect

 Screw model: SJSZ65/33

 Max.output: 300kg

 The install power : 160KW

 Guarantee period : 1 year

 Brand name : AORUI

 Application: It is widely used in communication, pavement of electric wire and cable ,jacket of bridge wire

rope ,agricultural irrigation ,urban (water supply)drainage and architecture fluctuation water system.



Description:

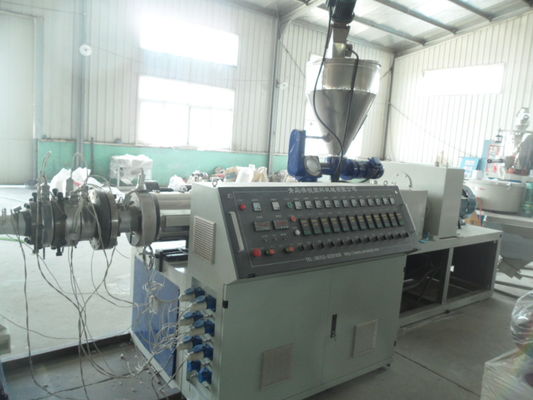

1. Two high efficient co-extrusion double screw extruders
2.It adopts excellent screw and new groove sleeve design, which makes the extruder with bellow advantages: high plasticization rate,smooth melt, stable production process, and enable the inside and outside layer of the pipe to use different materials .
3. Corrugation forming block is made by special alloy material. It has high precision, intensity and outstanding heat emission.

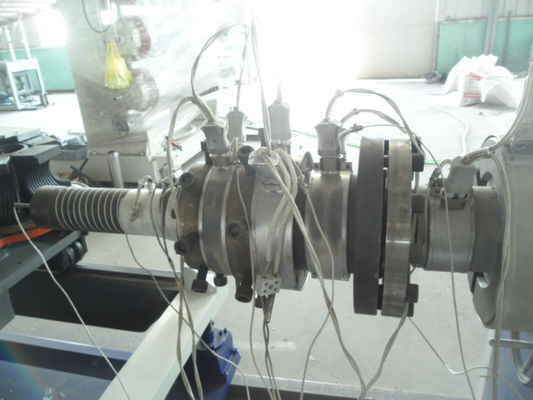

4. Nitrogen treatment of the mould surface. There is wall thickness adjusting device in the mouth mould and can produce pipes of different raw materials.
5. It has a flaring function, which can reduce the investment and enhance efficiency.6. The production line adopts advanced Simens PLC control system, with human-machine interface operating system, has high automaticity, easy operation.

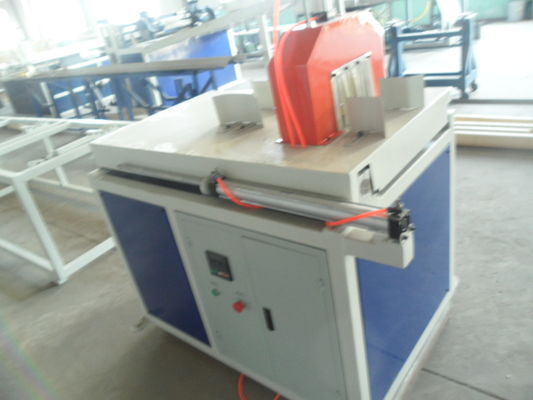

7. The mould die is of high precision and the mould blocks are changeable. There are two cooling modes to the mould block, by water and by fan. The planetary cutting machine is of high cutting precision; SIMENS human-machine interface control system realizes high automation. The production line is able to produce PE double wall corrugated pipe.
8. The extruder can be designed according to the different materials; HDPE material uses high efficiency single screw extruder, the PVC material uses large conical double-screw extruder or double-screw extruder.

Specifications:

Model

Main Machine (extruder)

Quantity of Module

Specification of Pipe(mm)

SDSB 160

SJ 65/33×2 (PE)

40

Φ50-Φ160

SJSZ 51×105,

SJSZ 65×132 (PVC)

SDSB 800

SJ 150/35×2 (PE)

40

Φ400-Φ800





Applications:

The pipes are widely used in the fields of electricity wire sleeve, urban water supply and drainage system,

agricultural irrigation pipe, underground filtration irrigation and the water supply or drainage system in buildings, etc.

PVC Double Wall Corrugated Pipe Plastic Extrusion Machine , PVC Corrugated Pipe Extruder 0



Competitive Advantage:

1. Pipe Diameter 50-800mm

2.High Efficient Single Screw Co-Extruder

3.Definitely Impressing Quality and Price
