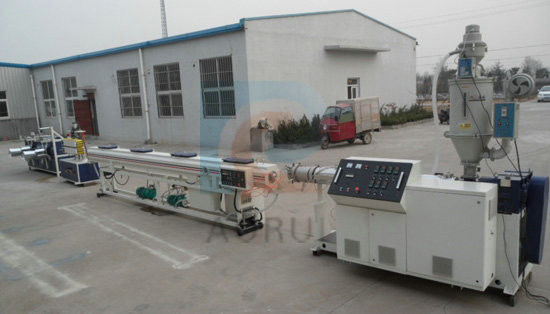

Plastic Pipe Making Machine , High Speed PERT Pipe Production Line

Plastic Pipe Making Machine , High Speed PERT Pipe Production Line

Quick detail:

  Weight:8t

  Power: 380V50HZ

  Production line speed: 10-25m/min

  Install power: 75KW

  Power actual consumed :60KW

  Screw type: single screw

  After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

port: Qingdao port

voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

Process type: extruding machine

Product:  floor heating pipe

Description:

PERT pipe production line

1)      Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization

2)      Separation mixing screw specialized for polyolefin

3)      Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and

little  internal stress

4)      Producing pipe limit Φ20-Φ160mm, manufacture velocity up to 16m/min

5)      May be used to produce HDPE silicon core tube, ordinary PP-R,PE and PEX pipes

6)      Low cost: the cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis

Specifications:

Applications:

  It can in addition to the radiant floor heating, including residential, shopping mall, hotel, hospital, stadium

and so on with floor heating pipe; Can also be applied in the hot water supply on the one hand, including

bath tube, hot spring water, indoor swimming conveyer system, and can also be applied in the field of

industrial water, including heat exchanger, heating coil, chemical industry, medicine, fluid conveying pipe,

and so on

Competitive Advantage:

1.high extruding velocity

2.effective plasticization

3.three co-extruding die

4.low cost
