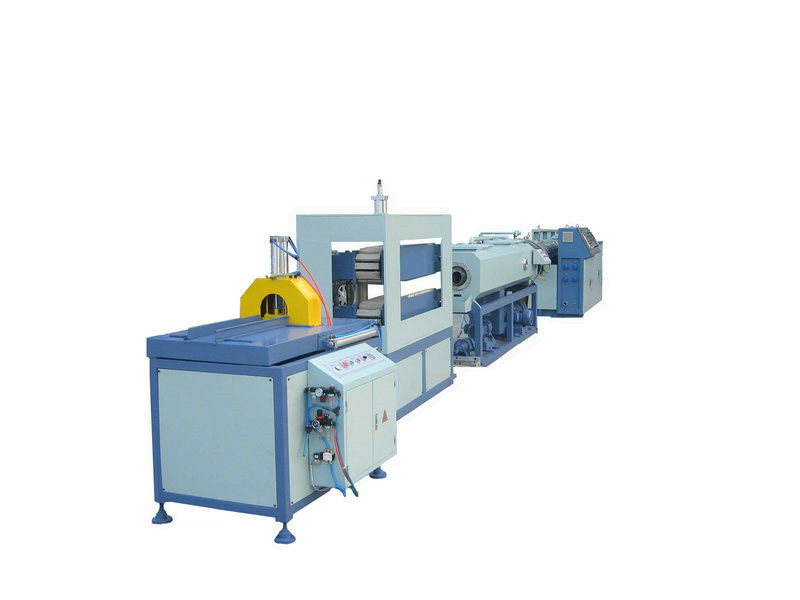

Full Automatic PE Hot And Cold Water Supply Pipe Production Line

Full Automatic PE Hot And Cold Water Supply Pipe Production Line
Full Automatic PE Hot And Cold Water Supply Pipe Production Line

Large Image :  Full Automatic PE Hot And Cold Water Supply Pipe Production Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA ISO9001
Model Number: SJ-90/30
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month

Full Automatic PE Hot And Cold Water Supply Pipe Production Line

Description
Screw Design: Single Screw Application: Pipe
Plastic Processed: PE Power: 37-285KW
Voltage: 380V50HZ Capacity: 200-400KG/h
Type: Plastic Production Line, WPC Extrusion Line Automatic Grade: Full Automatic
High Light:

plastic extrusion machine

,

plastic production line



Full Automatic PE Hot And Cold Water Supply Pipe Production Line



Quick detail:



 Material: PE

 Voltage: 380V50HZ

 capacity:200-400KG/H

 center high: 1000MM

 control: PLC

 power: 37-285KW

 Screw type: single screw

 After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port

 voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

  Process type: extruding machine





Description:



This production line configuration polyolefin special single screw extruder, a high-speed extrusion, efficient

speed change wait for a characteristic. Special mixed refine separated type screw and spiral structure

reasonable, pipe flow nose, smooth outer wall and inner wall. Special design of the sizing cooling way:

production, range φ50 - φ200mm,production speed up to 0.6 meters - 1.5 meters/points.



1. Product modeling is special thread form, may be bent freely around obstructions, convenient

construction.


2. Product special thread form physical modelling, make its compressive strength, in underground won't

because of stress and deformation.


3. Product acid, salt, alkaline can is admirable, long service life.


4. The product has strong impact resistance, flexible and high strength, even an earthquake or the ground

sinks etc variation is also quite safe.


Comprehensive above advantages, its construction fast, short construction period, interface, and have

higher less economic benefits.





Applications:



Widely used in hot and cold water supply system, pure water system, gas transmission, electric wire and

cable tube etc, has the very good market prospect and investment value





Specifications



Model/Spec.

Diameter range (mm)

Extruder model

Line speed (m/min)

Max. Capacity (kg/h)

Installed power (KW)

LPSG110

50-110

LSJ65/30

0.5-2m/min

100

50

LPSG200

75-200

LSJ90/30

0.5-2 m/min

140

80





Competitive Advantage:



1Steady performance


2competitive quotation


3Long using life


4High output
