Product Details:
|
| High Light: | plastic extrusion machine,plastic production line |
||
|---|---|---|---|
PE Drain And Sweage Plastic Pipe Extrusion Line 16mm - 1600mm Dia
Quick detail:
Type:pipe machine
Pipe material: PE
Application : drain pipe
Application: water/gas supply, drainage
Dia of pipe : 16-1600mm
Process type: extruding machine
Description:
Raw material+master batches → mixing →vacuum feeding → material dryness →single screw extruder →
four-color string extruder → basket0style mould → calibrator →spray vacuum calibration tank → spray
vacuum calibration tank →spray cooling water tank→ spray cooling water tank → color-ribbon printer →
belt haul-off → planet cutter → pipe rack →finished product inspecting &packing
HDPE pipe machinery is a novel tubing, production line developed by our company through digesting and absorbing,Europe latest advanced technology. hdpe pipe machinery is applicable for high-speed extrusion of PE.PP and PB. PERT,ABS etc. This production line is of beautiful appearance,high automation degree,stable & reliable manufacture. Vast comsumers gemerally welcome it by performance of a European machine,price of a domestic made machine. This extrusion line is suitable for producing ,double layer composite tube of large callber; It is the finest choice for replacing imported production line.
Applications:
1.Urban tap water pipe network system
2. Agricultural irrigation pipe
PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for
agricultural irrigation.
3.Industrial materials duct
4.Landscaping water supply network
Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.
5.Sewage discharge pipe
Specifications:
|
model |
PE,PP ,PVC 63 |
PE,PP,PVC110 |
||||
|
pipe range(mm) |
20-63 |
63-110 |
||||
|
capacity(kg/h) |
100 |
150-200 |
||||
|
center height(mm) |
1000 |
1000 |
||||
|

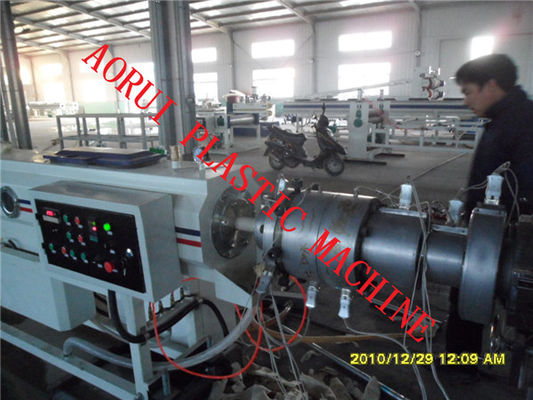

single screw extruder |
extruder model |
SJ65 |
SJ90 |
|
||
|
screw diameter(mm) |
65 |
90 |
|
|||
|
L/D |
28:1 |
33:1 |
|
|||
|
Screw rotation speed(rmp) |
80 |
100 |
|
|||
|
motor power(kw) |
22 |
55 |
|
|||
|
heating power(kw) |
16 |
36 |
|
|||
|
coolin blower power(kw) |
0.75 |
0.75 |
|
|||
|

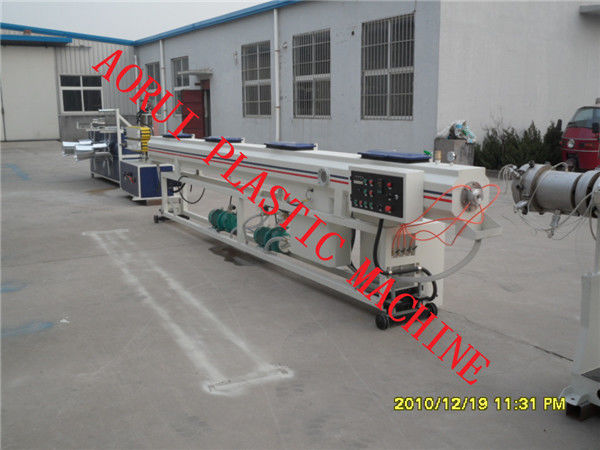

vacuum calibration tank |
length of calibration case(mm) |
6000 |
6000*2 |
|
||
|
vacuum degree(mpa) |
0-0.1 |
0-0.1 |
|
|||
|
absorbing gas speed(m3/h) |
60 |
60*2 |
|
|||
|
water pump power(kw) |
4 |
4 |
|
|||
|
longitudinal moving motor power(kw) |
1.1 |
1.1 |
|
|||
|
Spray cooling tank |
length of spraying tank(mm) |
4000-6000 |
6000-8000 |
|
||
|
water pump power(kw) |
4 |
5.5*2 |
|
|||
|
haul off machine |
driving power(kw) |
1.5 |
2.2 |
|
||
|
max pull(N) |
7000 |
8000 |
|
|||
|
effctive haul off length(mm) |
1200 |
1500 |
|
|||
|
Pneumatic blade type cutter |
blade diameter(mm) |
300 |
350 |
|
||
|
driving power(kw) |
1.1 |
1.1 |
|
|||
|
working air pressure(mpa) |
0.7-0.7 |
0.7-0.7 |
|
|||
|

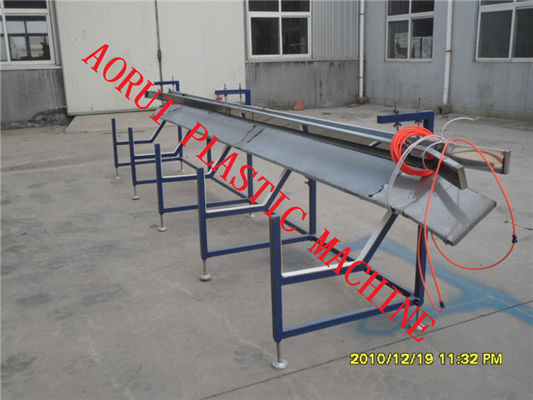

stacker |
length(mm) |
6000 |
6000 |
|
||
Competitive Advantage:
1.good after-service
2.spare parts are free
3.gurantee:one year or according to customer’s requirement.
4.advanced technology and better quality
