2 Stage Recycled Film Spaghetti Pellet Plastic Extrusion Machine

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C, Western Union
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Pelletizing Method:

Water Ring Cutting

Cooling Method:

Air Cooling

Wind Conveying Stage:

1-3 Stage

Application Field:

Cable, Hose, Profile, Sheet Etc

Characters:

Steady Operation, Low Noise, Low

Feeding System:

Force Feeder Or Agglomerator

Extrusion Process:

Special Designed Screw&barrel

Technical Documents:

Installation And Instrcution

Workers:

Port:

QINGDAO

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Plastic Extruding Machine

Plastic Extruder Machine

Product Description

2 Stage Recycled Film Spaghetti Pellet Plastic Extrusion Machine

QUICK DETAIL :

1.suit for producing PVC, PE,EVA,SPVC,etc
2.high speed for mixing
3.high output
4.competitive price
5.easy to control

Description:

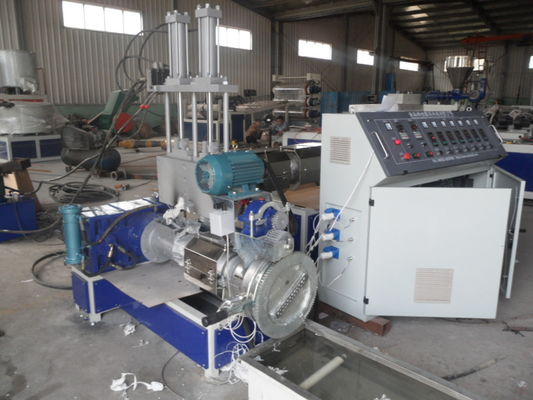

two-stage extruder consisted of two stage components. The first stage is single screw extruder, the second stage is SJ single screw extruder. This machine first of all to realize material better compounding and shearing by single-screw, then the single screw fulfills the task of extruding and granulating.

The scientific and advanced structure can avoid material decomposition phenomena due to overheating. To combines the advantage of single screw and complementation, likewise, propitious to every craft distribution and optimize so that making higher efficient and production capacity.

The two-stage extruder best suits for producing PVC, POM, XLPE thermo-sensitive material etc.

Features

1.Item Name: granulating line
2.Material shapes:Film, bag and flake
3.Greatly increase output

Applications:

1.Applicable plastic materials:PP,HDPE,LDPE,LLDPE,etc.
2.Material shapes:Film,bag and flake
3.Material types:pe bag,printed LDPE film,film (rolls,loose,bundles),agricultural film waste,foamed plastics(EPS) and raffia.
4.Note:Depending on material property,various downstream equipment are available

Specifications:

Model	Screw diameter (mm)	L/D	Screw rotation speed (r/min)	Max. extruding Capacity (kg/h)	Motor power (kw)	Heating zone
SJ-45	45	33:1	73	60	28/35	3
SJ-50	50	33:1	90	120	37/45	3
SJ-65	65	33:1	90	220	55/75	4
SJ-75	75	33:1	90	350	90/110	4
SJ-90	90	33:1	90	500	160/185	5
SJ-120	120	33:1	80	750	280/315	5
SJ-150	150	33:1	80	1000	355/385	5

Competitive Advantage:

1. Greatly increase output
2. Continuous production
3. Flexible pelletizing style
