Automatic PVC Foam Board Production Line Plastic Furniture Board Making Machine

Automatic PVC Foam Board Production Line Plastic Furniture Board Making Machine

Brand Name: AORUI
Model Number: SJSZ80X156
MOQ: One Set
Price: Negotiation
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 Sets Per Month
Detail Information
Place of Origin:
China
Certification:
CE, UL, CSA, ISO9001
Model Number:
SJSZ80X156
Brand Name:
Aorui
Condition:
New
Automatic Grade:
Fully Automatic
Certificate:
CE Certificate
Place Of Original:
China
Inverter Brand:
ABB
Final Product:
Pvc Foam Board
Warranty Time:
1 Year
Packaging Details:
Fumigation wood,film, pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets Per Month
Highlight:

Automatic PVC Foam Board Production Line

,

Plastic Furniture Board Making Machine ABB

,

SJSZ80X156 PVC Foam Board Machine

Product Description

PVC Foam Board Production Line , PVC Furniture Board Making Machine, PVC Plastic Board Equipment



Quick details:



Plastic PVC WPC Crust/Celuka/Skinned Foam Board/Sheet/WPC Flooring Board Extruder Machine



1.Frequency Changer is SIEMENS G120 Series(the best one in SIEMENS)

2.Main Motor/Cutter Motor/AC Contactor/Thermal Overload Relay are Germany SIEMENS

3.Breaker is SIEMENS from Germany

4.Temperature controller:OMRON Japan

5.Origin of Screw:Zhousan,Zhejiang
6.The material of Barrel is Japanese SKD

7.The mould is designed by our company with the latest technology in China

8.Calibration mould:Thickness is 100mm
9.Material formulation:we can input 100% recycled material.
10.Our Certificates :CE,ISO9001,SGS,TUV



Description of PVC Foam Board Machine:

1.PRODUCTION FLOW



The Plastic PVC WPC Crust/Celuka/Skinned Foam Board/Sheet/WPC Flooring Board Extruder Machine includes
1)Automatic feed loader
2)Conical twin screw extruder -SJSZ80/156
3)Corresponding PVC celuka foam Mould
4)Calibartion Platform
5)Cooling Bracket
6)Haul Off Device
7)Cutting Device
8)Stacker with compact structure and superior performance

2.PVC WPC Semi-skinning Sheet is a new mateiral for both inside or outside decoration. It has hard and smooth surface, whcih can be laminated by various materials such as PVC film, impregnated paper, etc. It opens a new world of decoration, the laminated board is not only waterproof, UV resistant and anti-corrosion, but also special and beautiful. WPC sheet is like wood, but it is much better than wood



Technical parameters:

Extruder 80/156 80/173 92/188
Capacity 350kgsh 550kgs h 650kgs h
Size of board 1220mm 1220mm 1220mm
Thickness 3-25mm 3-30mm 3-30mm


Advatanges:

1. Screw apply special design of mixing and plasticization funtion;
2. Coat hanger type die withtwo throttle design enalble to regulate the sheet thickness accurately;
3.Sheet thicknes shall be regulated by screw and pressing roller;
4. Separete roller temperature control system can make even sheet thickness
5. Winder withbig torque motor, regulate its speed and tension force;
6. Automatic metering device can pre-set the length of product.



Machine display:

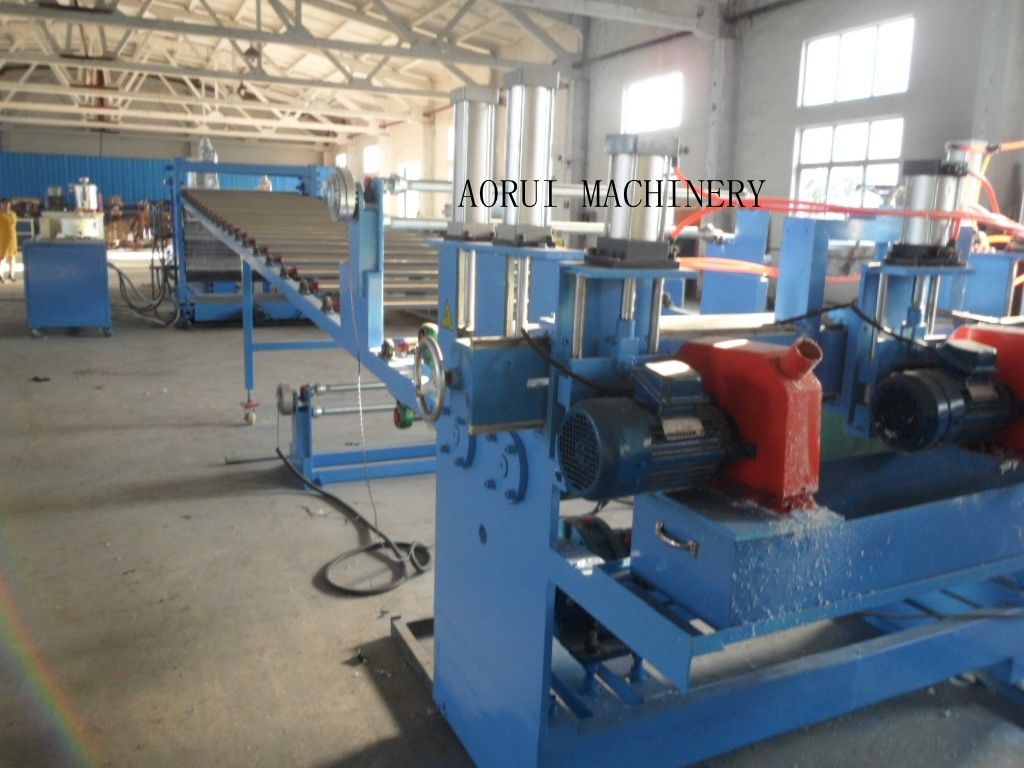

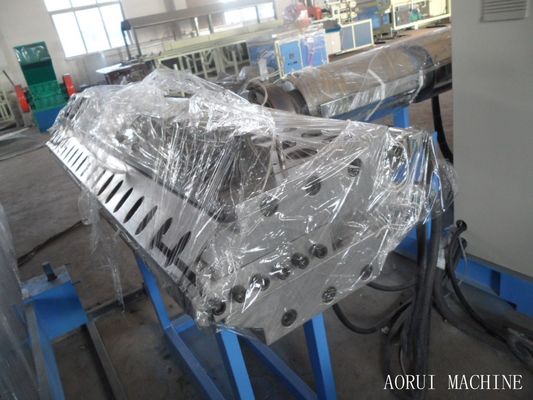

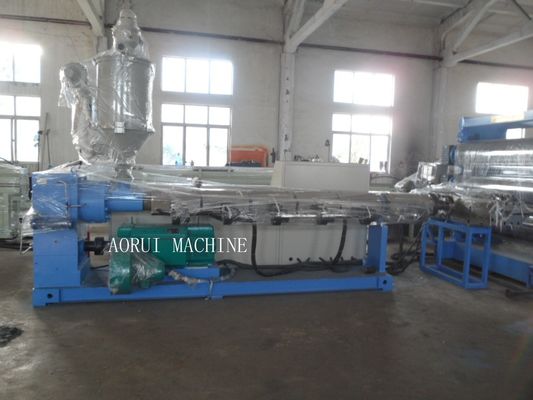

Automatic PVC Foam Board Production Line Plastic Furniture Board Making Machine 0

Automatic PVC Foam Board Production Line Plastic Furniture Board Making Machine 1
