Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Plastic Processed: | PVC WPC | Certificate: | CE Certificate |
| Voltage: | 380V 50HZ | After-sales Service: | Engineer Availiable To Service |
| Board Size: | 1220mmx2440mm | Motor Brand: | Siemens |
| Inverter: | ABB | Temperature Controller: | Omron |
| High Light: | PVC Crust Foam Board Making Machine,WPC Crust Foam Board Machine,380V Furniture PVC Board Making Machine |
||
High Quality WPC PVC Crust Foam Board Making Machine , PVC Foam Board Production Line For Furniture
Quick details:
Equipment composition list of production line
1 SJSZ80/156 twin screw extruder one set
2 Material mixing and feeding system 1 unit

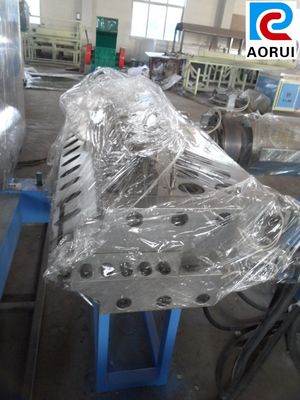

3 PVC Foam extrusion module 1 set (3-22mm thickness )
4 Mat setting machine 1 set
5 Cooling roller brackets 1 unit
6 8 Pairs (16 roller) traction machine 1 set
7 Plank Shearing machine 1 set
8 Edge trimming device 1 set
9 Stacking Machine 1 set
10 Electric Control System 1 unit
This WPC board production line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall....
Description of PVC Board Machine:
Specifiation of PVC foam board can be produced by machine :
Width: 915mm to 2050mm
Thicness: 5-30mm
Density: 0.35-0.7g/cm3
Hardness 55-80HRC
Production flow of pvc foam board machine
Material batching mixing_extruding_molding_vacuum calibrating and cooling_hauling_cutting- final WPC foam boards
Popular Surface treating ways:
- lamination
- hot stamp printing
Technical parameters:
| Model | Skinning foaming board extrusion line | Co-extrusion foamed board exrusion line |
| Product width | 1220-1600mm | 1220-1600mm |
| Product thickness | 3-20mm | 8-20mm SJZ65/132 |
| Extruder model | SJZ80/156 | SJZ80/156+SJZ65/132 |
| Capacity(Max.) | 300-400kg/h | 400-500kg/h |
| Main motor power | 75kw | 37KW/75kw |
Foamed skinning PVC sheet making machine has a very wide application range.
It can be used for cupboard, furniture board, advertisement board, construction decoration board, upholstery for train, car and ship.
Advatanges:
1.PLC Computer automatic control system
2. Adopted International famous brand for all electric components
3.Synchronization control system to ensure main extrusion speed can synchronous with haul-off speed to avoid board break occurring
4.Screw fracture prevention control system ( A software system to control and adjust the screw running speed)
5.Auto board stacking system (save labors)
6.Anti blocking mold system
7.Vacuum loading and dust collector system
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support by Bureau Veritas.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

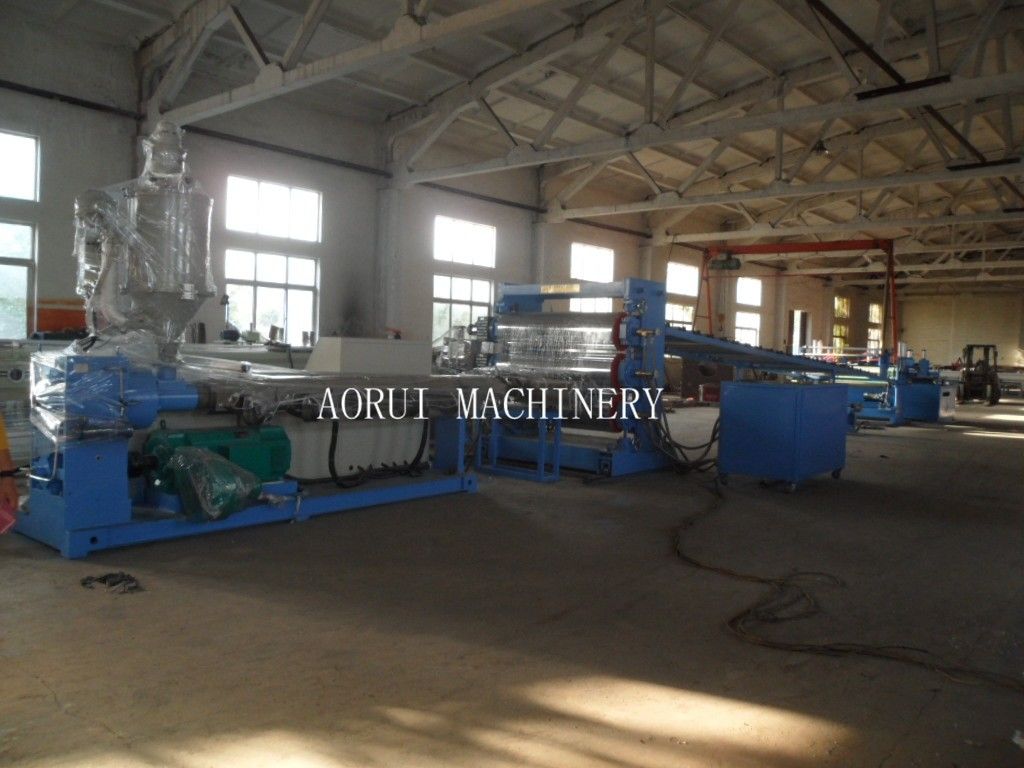

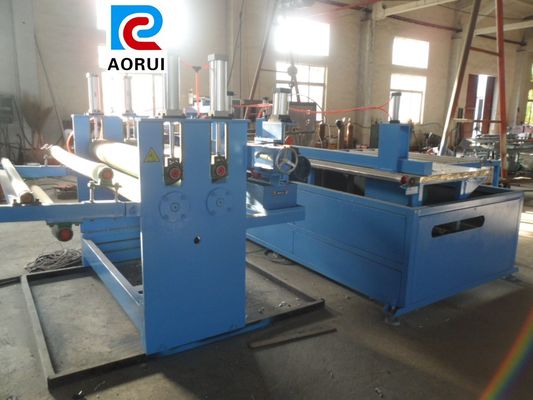

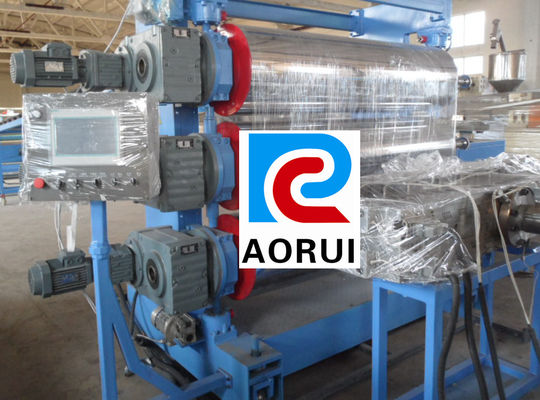

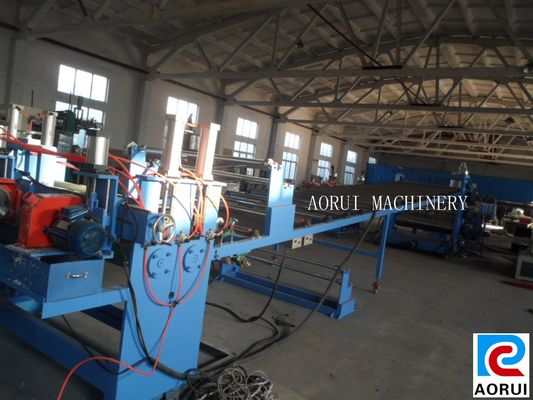

Machine display:
