Product Details:
|
| Brand Name: | Aorui | Plastic Processed: | Pvc |
|---|---|---|---|
| Condition: | New | Screw Design: | Double Screw |
| Voltage: | 380V 50HZ | Motor Brand: | Siemens |
| Place Of Original: | China | Port Of Lading: | Qingdao Port |
| Inverter Brand: | ABB | ||
| High Light: | WPC Crust Foam Board Making Machine,PVC Crust Board Making Machine,Twin Screw Extruder Board Production Line |
||
PVC WPC Ceust Foam Board Making Machine , PVC Foam board For Furniture Door Board
Quick details:
1.WPC furniture board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 40mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on.
2.WPC PVC foam board making machine is our featured product which can produce WPC PVC foam board.It is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.
Description of PVC Foam Board Machine:
1.PVC Foam Board Machine is our latest updated products. It's continuously improved on the basis of requirements and feedbacks from our customers and combined with foreign advanced technology. It shows superior performance, high reliability and practicality with its compact structure, advanced configuration and outstanding output in the production of 2-50mm thick, high-qualified PVC foam board.
2.Advantage of PVC WPC foam board:
Technical parameters:
Model | Semi-skinning foaming board extrusion line | co-extrusion foaming board line | ||
Production width (mm) | 1220 | 1560 | 2050 | 1220 |
Production thickness (mm) | 5-20 | 8-18 | 8-15 | 5-20 |
Extruder | SJZ 80/156 | SJZ 92/188 | SJZ 92/188 | SJZ 80/156 + SJZ 65/132 |
Max. Capacity (kg/h) | 400 | 550 | 550 | 500 |
Motor power (kw) | 75 | 132 | 132 | 75+37 |

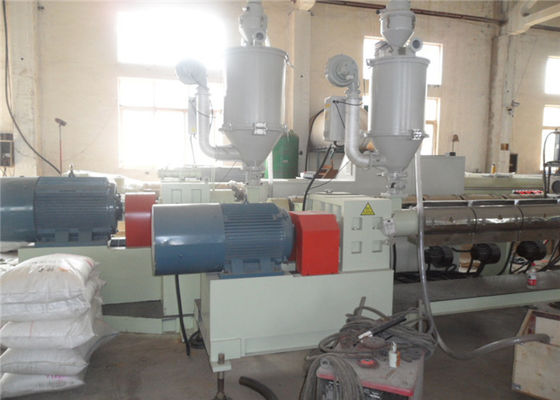

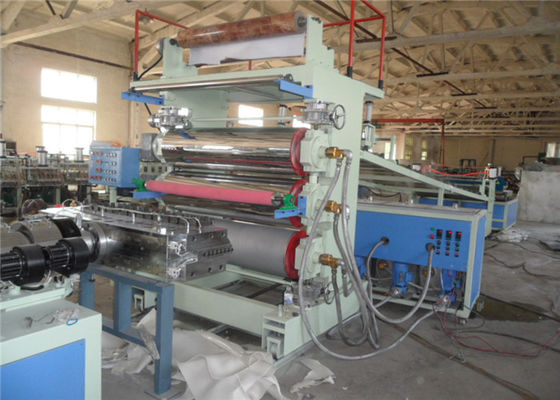

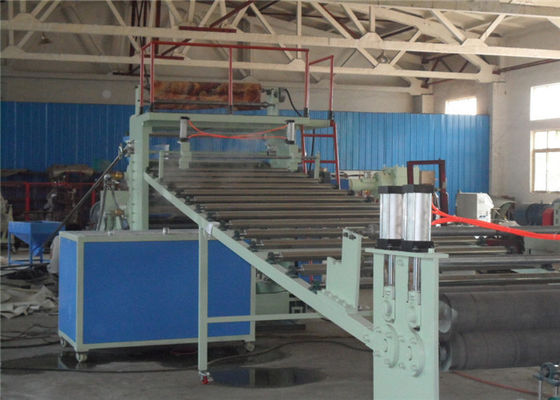

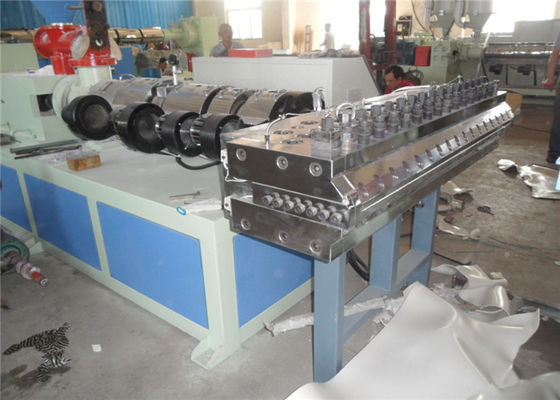

Machine display:
