Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Plastic Processed: | PVC WPC | Screw Material: | 38Cr Moaia |
| Screw Design: | Double Screw | Warranty: | 1 Year |
| Brand Name: | Aorui | Motor Brand: | Siemens |
| Raw Material: | PVC WPC | ||
| High Light: | WPC Furniture Board Making Machine,Double Screw PVC Foam Extruder,CE PVC Foam Board Production Line |
||
WPC Furniture Board Making Machine , PVC Foam Board Production Line With CE Certificate
Quick details:
The feature of PVC Semi-Skinning foam board:
1. Waterproof,anti-flame,anti-acid& akali,anti-moth,light weight,heat preservation,sound insulation,shock absorption
2. The process same with wood, but manufacturing performance is much better than wood.
3. Ideal substitute for wood,aluminum,composite board.
PVC WPC furniture board machine is applied to produce PVC foam board with width 1220mm to 1830mm, thickness 3mm to 40mm, and with very rigid surface, surface hardness can reach 55-80HRC, which are mostly used for advertising, cabinet, furniture board, consution template and so on.
Description of PVC Foam Board Machine:
1.PVC foam board also named Snow board and Andy board, the chemical component is polyvinyl chloride, also can be named foam polyvinyl chloride board. PVC Semi-Skinning foam manufacturing technique is combine free foam technique and semi-skinning foam to develop new technology, this equipment have advanced structure,simple formulation,easy operation etc. features.
2.WPC PVC foam board making machine is our featured product which can produce WPC PVC foam board.It is one kind of panel product which is used PVC resin, wood powder or (vegetable fibre) as the main materials, filled in Caco3, and added necessary lubrication, stabilize etc auxiliaries, after fully stirred heated and mixed, dispersed evenly by the high speed mixer, then heated and plasticized by the extruder and mould to form the panel.
3.Work flow
PVC powder +additive → mixer →SJSZ series extruder →Coat-hanger type mould →Vacuum calibration cooling platform →cooling rollers and edge-cutting device →Haul off →stacker
Technical parameters:
|
Model
|
Semi-skinning foaming board extrusion line
|
co-extrusion foaming board line
|
||
|
Production width (mm)
|
1220
|
1560
|
2050
|
1220
|
|
Production thickness (mm)
|
5-20
|
8-18
|
8-15
|
5-20
|
|
Extruder
|
SJZ 80/156
|
SJZ 92/188
|
SJZ 92/188
|
SJZ 80/156 + SJZ 65/132
|
|
Max. Capacity (kg/h)
|
400
|
550
|
550
|
500
|
|
Motor power (kw)
|
75
|
132
|
132
|
75+37
|

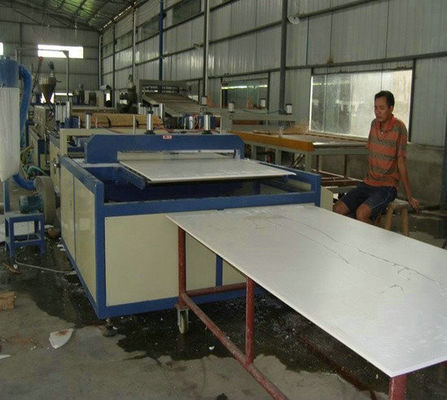

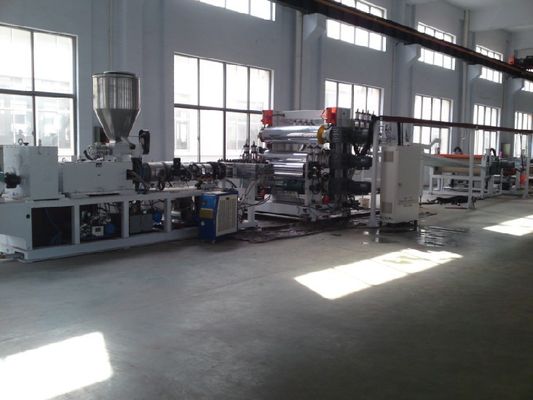

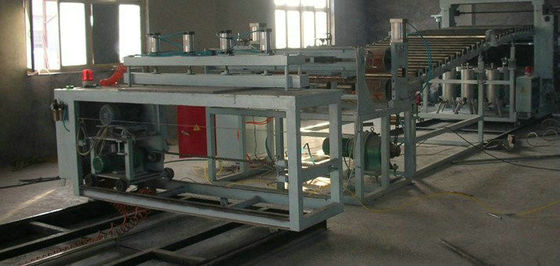

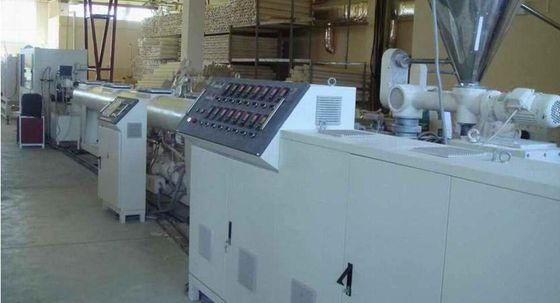

Machine display:
