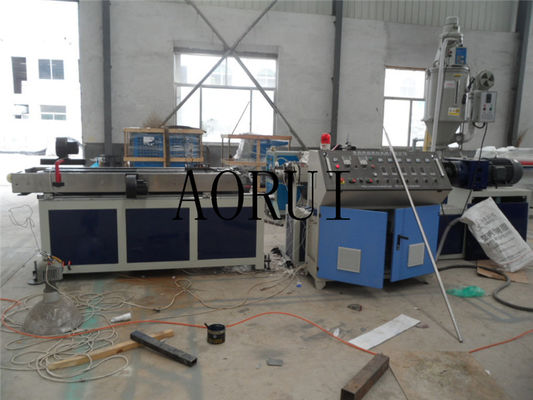

PP PE PVC Corrugated Pipe Machine Plastic Extrusion Line for Electrical Wire

PP PE PVC Corrugated Pipe Machine Plastic Extrusion Line for Electrical Wire

Brand Name: AORUI
Model Number: SJ65
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter
Detail Information
Place of Origin:
ShanDong China
Certification:
CE
Process:
Extrusion
Power:
11-125KW
Capacity:
300kg/h
Type:
Plastic Production Line, Plastic Extrusion Line
Market:
Europe,north America,etc
Automatic Grade:
Full Automatic
Product Type:
Corrugated Pipe
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
30 sets per quarter
Highlight:

plastic extruder machine

,

plastic extrusion machine

Product Description



Corrugated Pipe Plastic Extrusion Line for Electrical Wire , Corrugated Pipe Machine







Quick detail:



1.  widely used in fields of auto wire,electric thread-passing pipes

2. product type:circuit of machine tool,protective pipes of lamps and lanterns wire







Description:





1) material for the single wall corrugated pipe :

This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes ( by changing different screw L:D)



2) application for the single wall corrugated pipe:

Plastic single-wall corrugated pipes have features of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.





3) advatanges of our PP,PE single wall plastic corrugated tube extruder

SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars









Specifications:



Diameter Scope

4.5-9

9-32

32-50

Main Extruder

SJ-30

SJ-45

SJ-65

L/D

30:1

30:1

30:1

Output kg/h

10

40

80

Main Motor Power kw

4

11

18.5

Corrugator Power kw

1.1

1.5

1.5

Mould Block Pairs

42

44

44

Cooling Type

Water and air cooling

Linear Speed (m/min)

6-10

8-12

8-15

Counting Type

Sensing counting

Winding Type

Automatic/Manual





Applications:



1. high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

2. widely used for water drainage and air exhaust.









Competitive Advantage:



1. provide service manual and maintenance instruction of main electric appliances

2. responsible for installation, debugging and training
