Product Details:
|
| Power: | 11-125KW | Capacity: | 300kg/h |
|---|---|---|---|
| Type: | Plastic Production Line, Plastic Extrusion Line | Screw Design: | Single Screw |
| Application: | Pipe | Certificate: | CE |
| High Light: | plastic extruder machine,plastic extrusion machine |
||
Single Wall Corrugated Pipe Extruder High Efficient Screw for Air Conditionor
Quick detail:
1, municipal engineering: for drainage, sewage.
2, construction: for building rainwater pipes, underground drainage, sewage, ventilationduct.
3, rail, road communications equipment: used to protect the pipe communication cable,fiber optic cable.
4, the industry: widely used in chemical, hospitals, sewage pipes and environmental protection industries.
Description:
1. Extruder: high efficient screw, hard gear surface gearbox, uniformed raw material heating, good plasticization, high extrusion speed.
PE/PA/EVA/PP main machine is equipped with single screw extruder;
PVC main machine adopts double conic screw extruder .
2. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
3. Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change

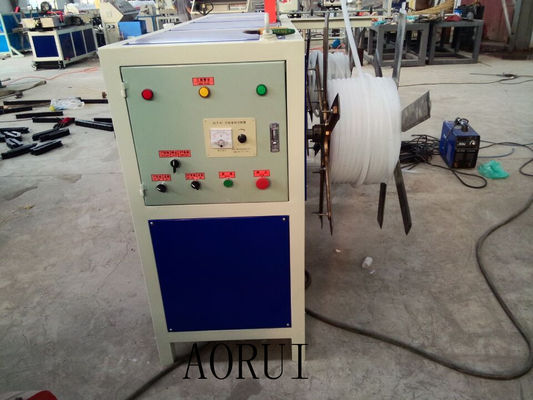

4. Coiler :Single position or double position with torque motor.
5. Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||
Applications:
1. widely used as electric wire protecting pipe, drain water pipe for clothing washer and so on.
2. golf, soccer works: as a golf course, soccer fields infiltration, drainage.
3. agriculture garden project: farmland, fruit tea, as well as forest calandria
Competitive Advantage:
1. Export: Egypt, Dubai, Turkey, Iran, Sudan, Saudi, Indonesia, Russia, Uzbekistan, Ukraine etc.
2. long-term cooperation, we always provide good quality, good price and good service to customer.
3. provide good service for machine installation and training, until the customers can run the machines and make stably production.
