| Brand Name: | AORUI |
| Model Number: | SJSZ-65/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 sets per month |
High Efficiency Plastic Pipe Extrusion Line / Full Automatic PE Pipe Production Machine
Quick detail:
PE cool and hot water pipe production line
Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life
PPR pipe production line
Description:

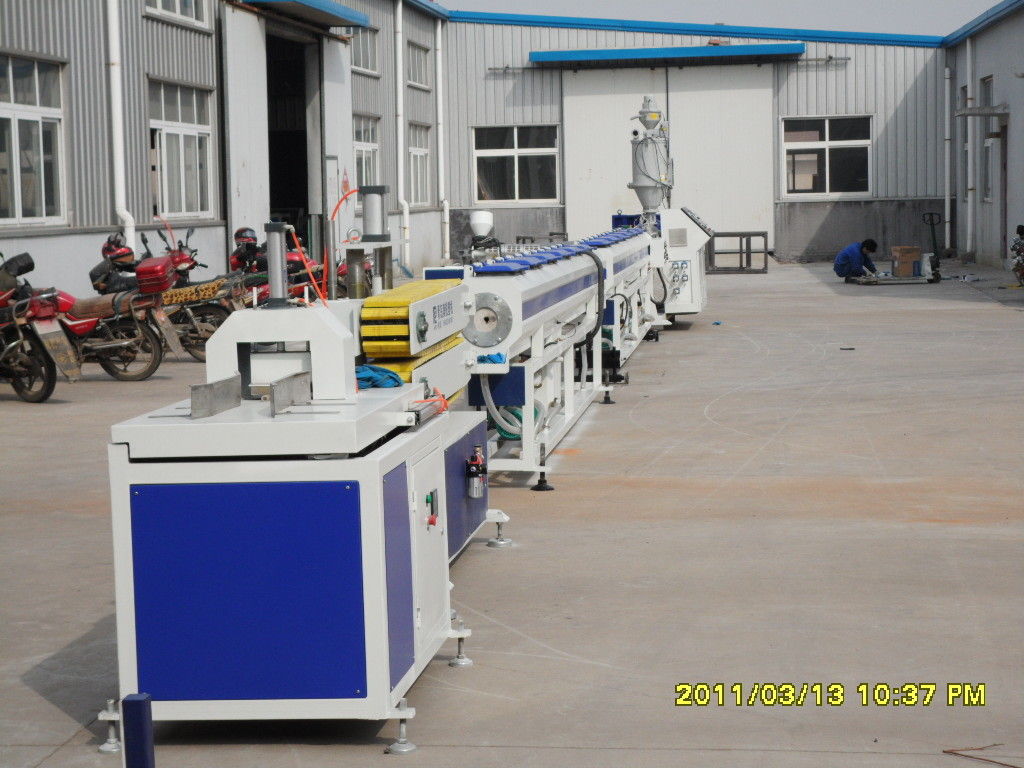

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→“one mould four pipes”mould→calibrator→spray vacuum calibration tank→ink printer→belt haul-off→uplift cutter→pipe rack→finished product inspecting&packing

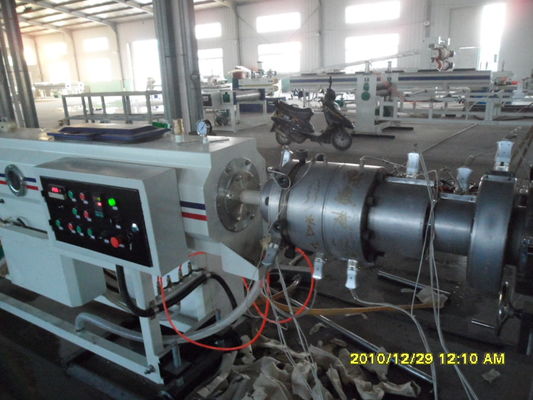

1 . Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization.
2 . The conical twin single extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical single screw can be made so as to achieve best plasticity performance and material quality.
3 . producing pipe limit 20-160mm, manufacture velocity up to 145m/min
4. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
Specifications:
| Extruder | SJ-65/30B | SJ-90-30B | SJ-120/30B | SJ-150/30B |
| SJ-30/25B | SJ-45/30B | |||
| SJ-25/25B | SJ-25/25B | SJ-30/25B | SJ-30/25B | |
| Pipe Dia(mm) | 20-63 | 20-160 | 110-400 | 315-630 |
| Water sizing trough | SGZL-75 | SGZL-160 | SGZL-400 | SGZL-630 |
| Water cooling trough | SGPL-75 | SGPL-160 | SGPL-400 | SGPL-630 |

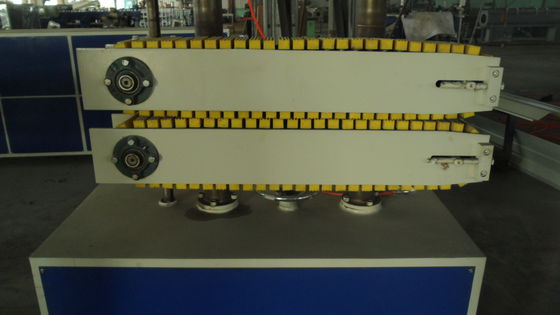

| Haul off machine | SLQ-75B | SLQ-160B | SLQ-400B | SLQ-630B |
| Cutting Machine | STG-75 | STG-160 | STG-400 | STG-630 |
| Stacker | FZ-6000 | FZ-6000 | FZ-6000 | FZ-6000 |
1. Water supply and drainage pipelines in building;
2. Rainwater drainage pipelines in building;
3. Electrical wiring pipe in building;
4. Air conditioning condensate water systems.
Competitive Advantage:
1 . high output
2 . high efficenicy
3 . long working time
