products details

Home Products

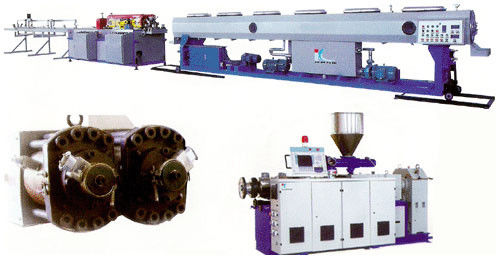

PP Plastic Pipe Extrusion Line / 16-63mm PE Plastic Pipe Manufacturing Machine

Brand Name:	AORUI
Model Number:	SJ90/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quater

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE BV ISO9001

Condition:

New

Brand Name:

AORUI

Processing Type:

Extrusion

Automatic Grade:

Fully Automatic

Tyep:

Twin Pipe Extrusion Production Line

Max Output:

220kg/h

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quater

Highlight:

plastic extruder machine

plastic production line

Product Description

PE Plastic Pipe Extrusion Line , PE Twin Pipe Machine Plastic / Extruder

Quick detail:

1. first class pipe die was designed with many years experience

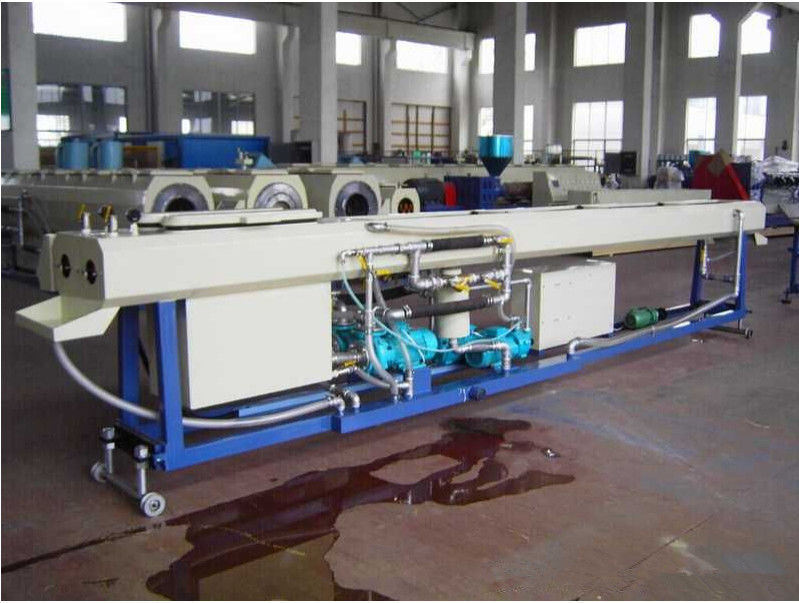

2. twin pipe vacuum sizing system

3. twin pipe hauling mechanism

4. synchronous cutting device

Specification:

Raw material+additive→mixing→conveying feeding→force feeding→conical double screw extruder→"one mould four pipes" mould→calibrator→spray vacuum calibration tank→ink printer→belt haul off→uplift cutter→pipe rack→finshed product inspecting & packing

1.PE plastic pipe machine is mainly used in the manufacture of PE pipes with various diameters and wall thickness in the aspects such as the agricultural and constructional plumbing, cable layietc

2.This set is composed of conical twin-screw extruder, vacuum cablibrating tank, haull-off, cutter, stacker or belling machine etc.

3.The extruder and haul-off machine adopt the imported AC frequency control device,The vacuum pump and hauling motor employ superior goods.

4.Haul-off machine of different specifications, such as two caterpillars, three caterpillars, four caterpillars, six caterpillars etc are designed for different requirements.

5.It is additionally attched with length measuring apparatus and thickness increasing device

6.The unit is of reliable performance and high production efficiency .

Production Line Structure

Extruder Model	SJ-51X105	SJ-65X132
Accessory Machine	GFDP-63	GFDP-63
Pipe diameter(mm)	16-63	16-63
Production Speed	12(m/min)	12(m/min)
Max.output	160(kg/h)	220(kg/h)

Why choose us and our advantages:

1. we have many years experience

2. we have goos after sales service

3. we have resonable price

4. The stable operation and output.
