Single Screw Extrusion PE Carbon Sprial Reinforcing PE Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Automatic Grade:

Fully Automatic

Screw Design:

Single Screw

Plastic Processed:

Output:

0.6-1.5m/min

Type:

Plastic Production Line, Plastic Extrusion Line

Application:

Pipe

Place Of Origin:

Shandong , China(Mainland)

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic extruder machine

plastic production line

Product Description

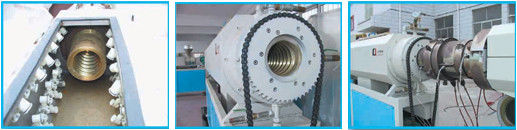

PE Plastic Extrusion Line , PE Carbon Sprial Reinforcing Pipe Production Line

Quick detail

SIngle screw extruder

High speed extrusion and effective plasticization

production speed up to 0.6-1.5m/min

Description:

Single screw extruder specially used for polyolefine material possess effective plasticizing effect and extrusion speed
The special detached type compounding screw an die head with spiral structure & reasonable channel are application to produce pipes with smooth inside and outside face
unique calibration and cooling mode is capable of produce pipe with diameter from 50mm to 200mm, production speed is up to 0.4-1.5m/min
All kind of polyolefine material, multi-layers spiral strengthen pipe can be co-extruded, recycled material can be used in production.

Applications:

It can be widely used in the industries of machinery, coal mine, oil, chemical plant, agricultural irrigation, building, solar water heater, coal gas pot, etc.

Specifications:

Model		AS-65	AS-75	AS-90
Extruder		AS-SJ65/28C	AS-SJ75/28C	AS-SJ90/28C
Range of Pipe Dia.	mm	25-50	32-64	38-75
Installed Capacity	kw	33	45	58
Average Energy Consumption	kw	19.5	30.2	36.5
Dimension (L×W×H) (Approx)	m	8×3.3×1.5	9×4×1.8	12×4.5×2
Total Weight (Approx)	T	3.5	5	6
