| Brand Name: | AORUI |
| Model Number: | SJ65/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |
High Output Plastic Extrusion Line , PE / PPR CooL And Hot Water Pipe Production Line
Quick detail

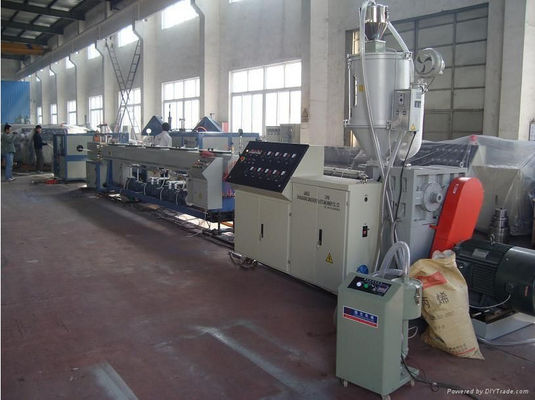

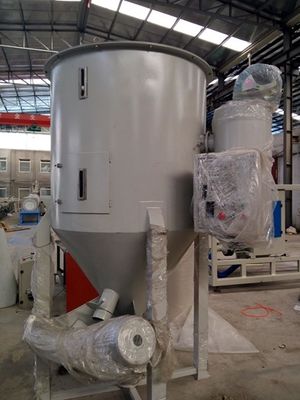

Plastic automatic charger →Hopper plastic dryer→ Single screw extruder → Mould and calibrator → Vacuum forming machine → Haul off machine → Cutting machine → Discharging rack
Description:
1. Special singgle screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin.
2. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress. Producing pipe limit 20-160mm , manufacture velocity up to 15m/min.
3.May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.
4. It's equipped with high efficiency extruder, high torque reduction gear case, late model grooving barrel and LTM high efficiency screw, therefore, it could achieve large output and could really realize plasticizing in low temperature.
5. Application of PE / PPR pipe production line:Buliding hot and cold water system. Buliding heating system , including floor , wall heating system.
6. A casing pipe and is widely used for the protection of light cable and electric cable . This kind of pipes have many advantages, such as corrosion resistant light, easy to fix, long time to use etc. The pipes are widely used in high-way, municipal constructional, flats and so on.
7. The well-coordinated components, coupled with auxiliary machines, allow this pipe production line to produce pipes for different purposes, including drain pipes, water supply pipes, electrical conduits, PVC fire-retardant pipes, as well as piping for use in chemical industry.
8. Our PPR / PERT cool and hot water pipe production line are designed with good quality screw structure, according to desired pipe specifications and raw material .
Main Technical Parameter
| Extruder | SJ65-30B | SJ-90/30B | SJ-120/30B | SJ-150/30B |
| SJ-30/25B | SJ-45/30B | |||
| SJ-25/25B | SJ-25/25B | SJ-25/25B | SJ-25/25B | |
| Pipe Dia(mm) | 20-63 | 20-160 | 110-400 | 315-630 |

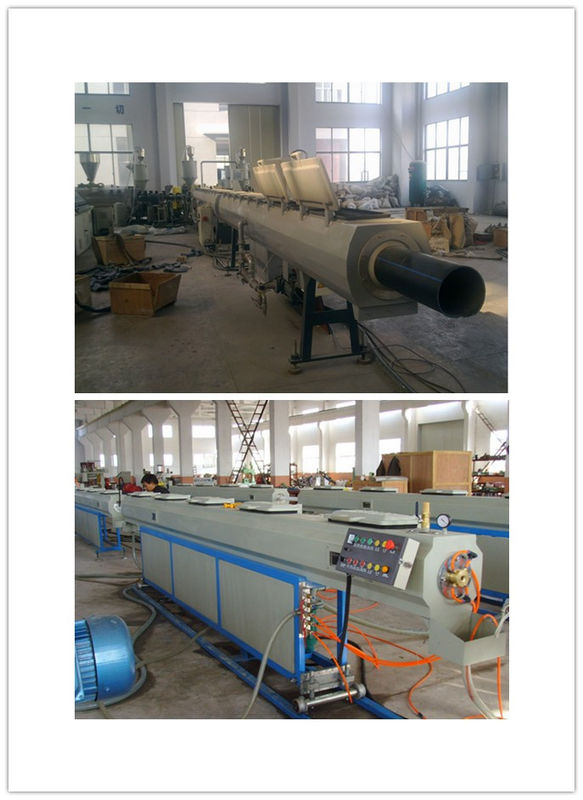

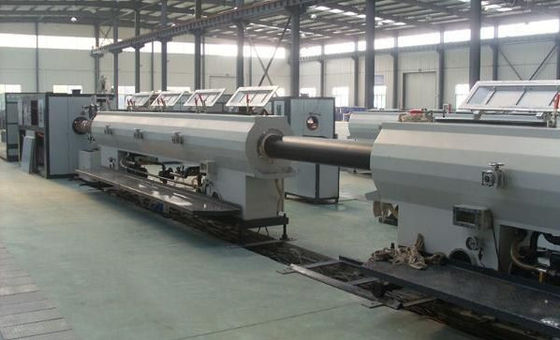

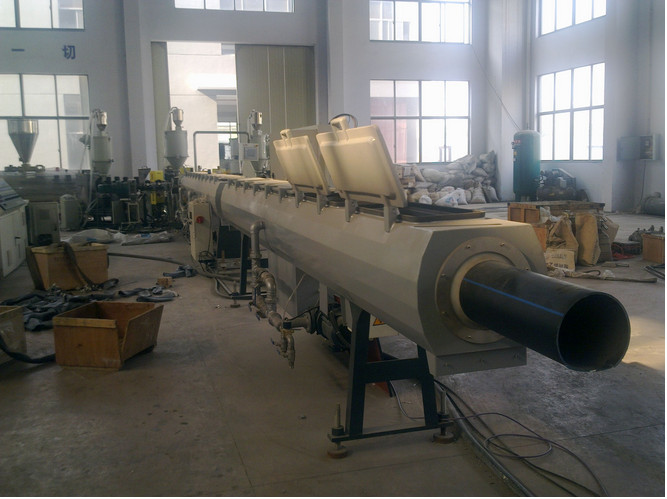

| Water Sizing Trough | SGZL-75 | SGZL-160 | SGZL-400 | SGZL-630 |
| Water Cooling Trough | SGPL-75 | SGPL-160 | SGPL-400 | SGPL-630 |
| Haul off Machine | SLQ-75B | SJQ-160B | SLQ-400B | SLQ-630B |
| Cutting Machine | STG-75 | STG-160 | STG-400 | STG-630 |
| Stacker | FZ-6000 | FZ-6000 | FZ-6000 | FZ-6000 |
Our Advantages:
1. Fast delivery : around 30 days after receiving advanced payment
2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification
3. Good pre-sales and after-sales service
4. We offer technique assistance , our engineers availiable to service to abord .
5. We have more than 15 years experiences in this field , we are a professional manufacturer of plastic machinery in China , and we especially focus on the pipe produce.
For more details and get quotation of the pipe production line, please send inquiry to us! thanks!
