| Brand Name: | AORUI |
| Model Number: | SJ45/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |
High Output Plastic PVC Pipe Extrusion Line , PVC Eiber Reinforced Soft Pipe Production Line
Quick detail
1. Easy in installation and maintation
2. High efficiency single screw extruder
3. It can produce PVC garden hose or PVC soft hose.
4. High efficiency singel screw extruder . It can produce PVC garden hose or pvc soft hose .The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm .This pvc hose is mostly used as home, garden,farm, lawn and so on.
Sepecification:

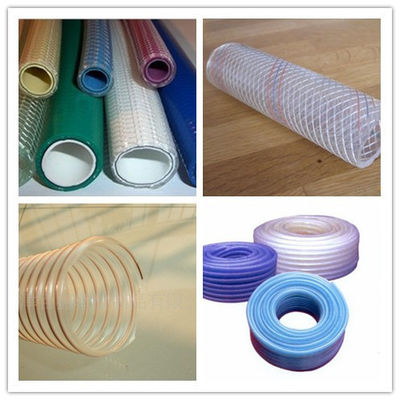

1. PVC fiber reinforced hose, also known as PVC network pipe, commonly known as plastic snakeskin tube, suitable for transporting the gas and liquid with pressure or corrosive , widely used in machinery, coal, petroleum, chemicals, agricultural irrigation, construction, civil (solar water heaters, gas cylinders) and other fields.
2. This line is designed to produce PVC fiber reinforced hose,the wall of which is three layers,outer and inner layer are soft PVC hose,miiddle layer is terylene fiber network,which has good chemical and physical proerty.Unit according to the different processing materials, can choose different models of the host. PVC with conical twin-screw extruder, ensure the plasticizing effect, high speed, high pressure extrusion. PE host adopt high-efficiency BM mixing polyethylene special screw, ensure high speed, high efficiency, precise extrusion.

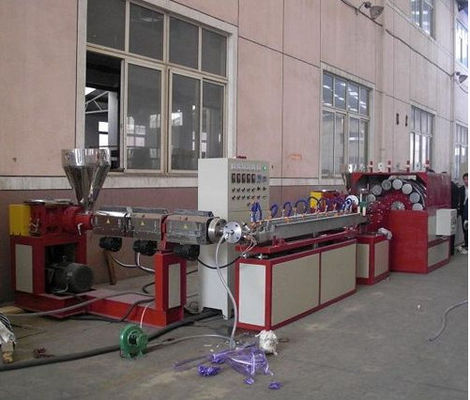

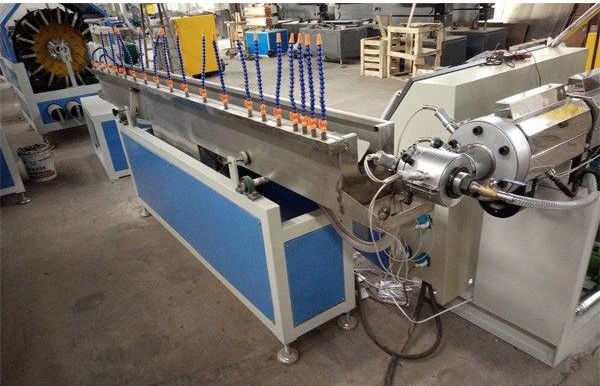

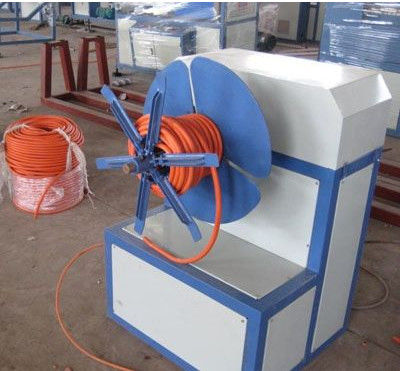

3. It is consist of double screw extruder , mould , vacuum sizing cooling water tank , spray colling water tank , haul off machine , cutting machine , winder.
4. Screw and barrel material is 38CrMoAlA , Mold material is 40Cr ,forged die steel under hard chromium plating and polishing treatment , Whole vacuum:four spray is ABS spraye nozzel,stainless steel pipe , and the whole machine is easy to operate , and have high output , low noise and low consumption.
Technical parameters:
| Model | LGSJ65 | LGSJ45/30 |
| Extruder | SJ65/28 | SJ45/30 |
| Diameter Range(mm) | Φ12-Φ50 | Φ6-Φ14 |
| Output | 40-75 | 20-40 |
| Installed Power(KW) | 50 | 35 |
Our Advantages:
1. Have many years experience , we have more than 15 years expwerience.
2. good pre-sales and after-sales service , we provided technical assistance , we will inviite customer to visit our factory to see the running machine , id client need , our enginerr can go to abord to install the machine and train the local workers , until they can operate the manchine.
3. The pvc reinforced pipe has widely application , and it has high quality and low cost.
