Plastic Extrusion Line For PVC , PVC Fiber Reinforced Soft Pipe Production Line In Garden

Brand Name:	AORUI
Model Number:	SJ65/33
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	30 sets per quarter

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

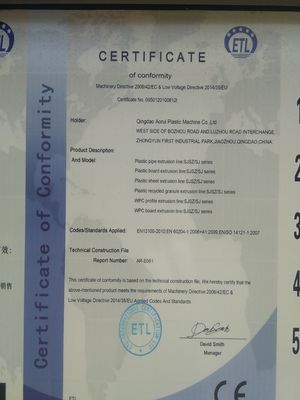

CE UL CSA ISO9001

Material:

PVC

Screw Design:

Single Screw

After-sales Service:

Engineers Availiable To Service

Condition:

New

Machine Name:

Pipe Plastic Extruder

Place Of Origin:

Shandong , China

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

30 sets per quarter

Highlight:

plastic extruder machine

plastic production line

Product Description

Plastic Extrusion Line For PVC , PVC Fiber Reinforced Soft Pipe Production Line In Garden

Quick detail

PVC Fiber Reinforced Soft Pipe Production Line In Garden

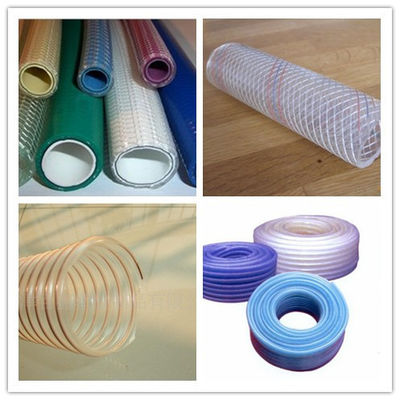

1-soft pvc hose
2-two extruders
3-hose diameter:6-50mm

Specifications:

Fiber pipe machine
pvc fiber reinforced soft pipe production line
Low cost
High output
ISO SGS

Details:

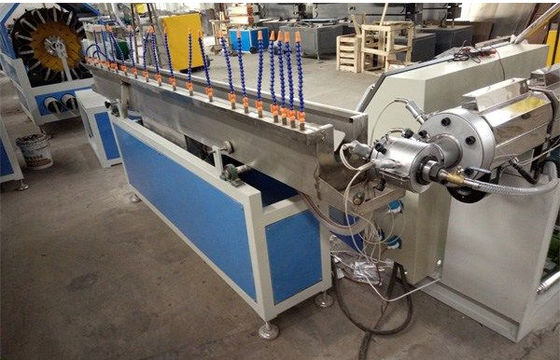

1. Equipment list of this machine:

A. Conical twin screw extruder

B. Mold , mold material is 40Cr ,forged die steel under hard chromium plating and polishing treatment

C. Vacuum sizing cooling water tank , the vacuum pump power is 4kw

D. Caterpillar tractor , the notor power is 3kw

E . Automatic cutting machine , the power is 3kw

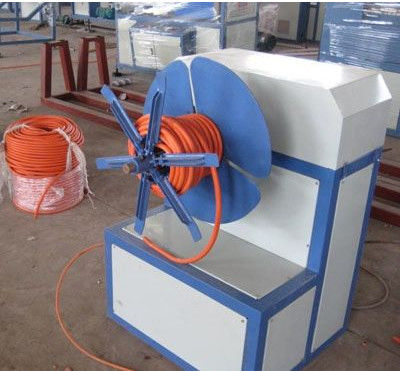

F. Automatic unloading device.

2. This line is the newly-developed product of our company, which is mainly used to produce liquid-conveying PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc.

3.It is widely used to convey the pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal mine, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas cylinder). At the present time, it is widely used as the irrigation pipe to the garden and lawn.

Main technical parameter

Extruder	SJ65/28	SJ45/30
Diameter Range(mm)	Φ12-Φ50	Φ6-Φ14
Output	40-75	20-40
Installed Power(KW)	50	35
Main Extruder	SJ65/28	SJ45/28
Diameter Range(mm)	Φ16-Φ50	Φ6-Φ14
Output	40-75	20-40
Producing speed	4-8m per min
Installed Power(KW)	50	35

Why choose us:

1. Fast delivery : around 30 days after receiving advanced payment

2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification

3. Good pre-sales and after-sales service

Plastic Extrusion Line For PVC , PVC Fiber Reinforced Soft Pipe Production Line In Garden 0

For more details and get quotation of the PVC pipe production line, please send inquiry to us! thanks!
