| Brand Name: | AORUI |
| Model Number: | SJ65/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |
PE / PPR Plastic Pipe Extrusion Line , Single Screw PE / PPR Cool and Hot Water Pipe Extrusion Machine
Quick Detail:
1. Adopting extrusion technology, and the final products of this line, which can endure pressure 0.4-2.5Mpa , Special high-efficiency single screw extruder ensuring even and stable plasticization.
2. Special designed mould , High torsion gearbox, strong hardness and high smoothness gears.
3. The extruder adopting German latest advanced technology . Screw optimizes composing groove barrel and lengthened feeding segment.there is advantage as following by using separate type acrew and groove barrel toghter: its realized extruding melt material melting process.thus get more extrusion throughput. it realized extruding meltmaterial in low temperature.
4. PE series plastic extrusion line is mainly used in the area of agricultural water supply systerm, architectural water supply systerm, pavement of cablesiect.
Specifications:

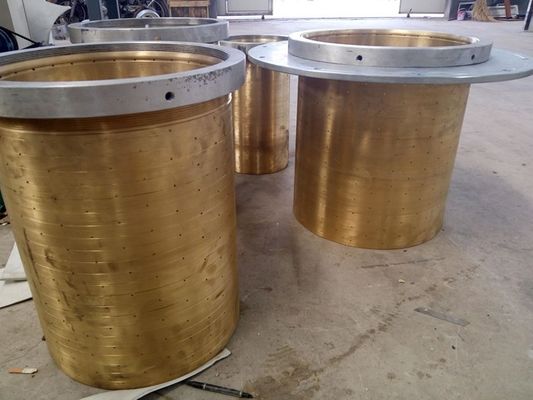

1. Special single screw extruder for polyolefin , having high extruding velocity and effective plasticization. Separation mixing screw specialized for polyolefin. Specially designed 2-3 co-extruding die , reasonable channel , smooth outside and inside wall , and little internal stress.Production pipe limit 20-160mm , manufacture velocity up to 15m/min.May be used to produce HDPE silicon core tube , ordinary PP-R , PE , PEX and PE-RT pipes.

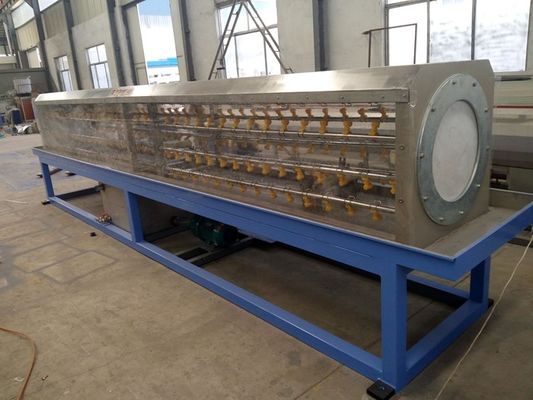

2. single screw extruder→ mould→calibrator→vacuum calibration tank→spray cooling water tank→Pedrail haul-off→cutter→double station rewinder→ Final Product.
3. PE pipe Production Machine is suitable making pipe that can be widely used in water supply, drainage system and high voltage cable production pipe. This line can solve the problems of high temperature melting,high viscosity, and easy-decomposition. The special designed screw, gear box and mould make the line reliable and easy operation.
Technical Parameters of PE Production Line
| Extruder | SJ-65/30B | SJ-90/30B | SJ-120/30B | SJ-150/30B |
| SJ-30/25B | SJ-45/30B | |||
| SJ-25/25B | SJ-25/25B | SJ-30/25B | SJ-30/25B | |
| Pipe Dia | 20-63 | 20-160 | 110-400 | 315-630 |
| Water Sizing Trough | SGZL-75 | SGZL-160 | SGZL-400 | SGZL-630 |
| Water Cooling Trough | SGPL-75 | SGPL-160 | SHPL-400 | SGPL-630 |
| HaulOff Machine | SLQ-75B | SLQ-160B | SLQ-400B | SLQ-630B |
| Cutting Machine | STG-75 | STG-160 | STG-400 | STG-630 |
| Stacker | EZ-6000 | FZ-6000 | FZ-6000 | FZ-6000 |
Application:
mainly used for the indoor water supply. Using heat-melting weld means for fittings, antisepsis and anticorrosive, so this kind of pipe is the new environment- protection water supplying products.
Competitive advantages:
1. We have more than 15 years experience in plasticextrusion machine.
2. Our engineers can go to aborad to install the machine , if customer need, our engineers can trainning the local worker how to use and maintain the machine.
3. we are factory , customer can visit to see the machine and test the machine.
4. We have CE&ISO9001 certificate.
