Product Details:
|
| Condition: | New | Screw Design: | Double Conical Screw |
|---|---|---|---|
| Automatic Grade: | Full Automatic | Plastic Processed: | PVC |
| Material: | PVC | After-sales Service: | Engineers Availiable To Serive |
| Place Of Origin: | Shandong , China | ||
| High Light: | Plastic Extrusion Equipment,Plastic Extruder Machine |
||

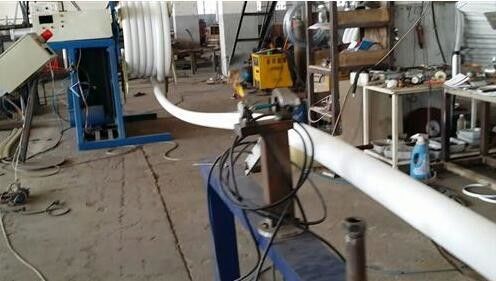

Powerful Plastic Pipe Extrusion Line / Double Wall Corrugated Pipe Machine
Quick detail:
1.The pipe owns many features of anti-high temperature, PLC control &touching screen
anti-corrosion, High output &working accuracy with complete inner water cooling
wearable, high strength etc.
2. extrusion blow molding system
PLC computer control, high precision
double working stations , high production capacity
max. PE pipe length is about 1M
wall thickness controller can uniform the pipe wall thickness
Description:
1. Mould and auxiliary machine: the foamed mould die is of high precision; the mould blocks are of changeable; there are two cooling modes to the mould block, by water and by fan. The belling in line of the PVC pipe is available, which ensures all the performance index of the pipes. The planetary cutting machine is of high cutting precision; SIMENS human-machine interface control system realizes high automation. The production line is able to produce PE double wall corrugated pipe when change the extruder and some related equipment.
2. Extruder: The extruder can be designed according to the different material; HDPE material uses new type high efficiency single screw extruder, the PVC material uses large conical twin-screw extruder or parallel twin screw extruder.
3. Corrugated pipe machine can be used to produce small diameter single wall corrugated pipe with PVC,PP and PE raw material. Molding corrugated pipe with smooth inside and outside surface,and even ripple at one time by corresponding die. Corrugated pipe can be used as wire and cable passing pipe , washing machine drain pipe, dust collector pipe and ventiduct. Small size corrugated pipe of 4-40mm is also used in car,
Application:
1. This kind of pipe is widely used in the fields of auto wire, electric wire, circuit of tool machine, protection of lamp wire, water pipe of air conditioner and washing machine etc.
2. This production line mainly uses PE or PVC as raw material to produce large caliber double-wall corrugate pipe. Thanks to its unique structure, the pipe has the advantages of light weight, good performance of shock resistance, high rigidity, corrosion-resistance, cold and hot resistance; therefore, the pipes are widely used in the fields of electricity wire sleeve, urban water supply and drainage system, agricultural irrigation pipe, underground filtration irrigation and the water supply or drainage system in buildings.
Specifications:
Pipe Diameter Range(mm)
| 4.5-9 | 9-32 | 16-50 | |
| Main Machine Model | SJ-30 | SJ-45 | SJ-65 |
| Screw L/D | 25: 1 | 22: 1 | 22: 1 |
| Production Capacity(kg/h) | 10 | 40 | 60 |
| Main Motor (kw) | 5.5 | 15 | 18.5 |
| Molding machine Power(kw) | 1.1 | 1.5 | 2.2 |
| Pair of Modules | 42 | 50 | 50 |
| Production Speed(m/min) | 6-10 | 8-12 | 8-12 |
Competitive Advantage:
1.good after-service , engineers can availiable go abroad to serive.
2.we have more than 15 years in plastic machinery field
3.we are nearby QINGDAO port , the transportation is very convenient
