Product Details:
|
| Condition: | New | Material: | PVC |
|---|---|---|---|
| Screw Design: | Double Screw | Place Of Origin: | Shandong , China |
| Application: | Pipe | Type: | Pipe Making Machine |
| Warranty: | 12 Months | Voltage: | 380v50hz Or According To Customer's Requirement |
| High Light: | Plastic Extrusion Equipment,Plastic Extruder Machine |
||

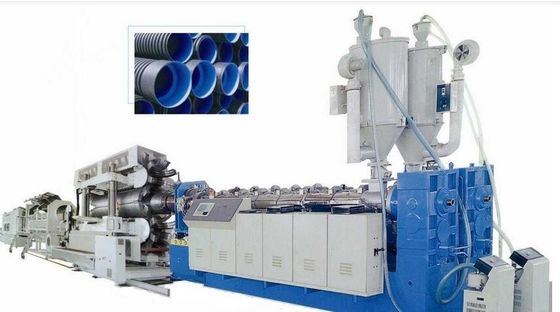

Double Screw PVC Material Double Wall Corrugated Pipe Machine big capacity
Quick detail:
a)Main extruders: ESJ90 and ESJ120
b)Shuttle transmission principle
c)Parking station for in-line cuff production optionally available
d)Mould block movement controlled by PLC
e)Mould blocks driven by servo motors
f)Curvless mould block movement
g)Open, horizontal structure design
h)Vaccum forming,
I) Closed water cooling
Description:

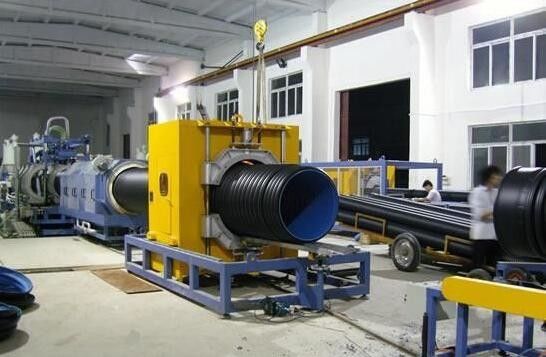

1. Corrugation forming machine: closed structure, module link in the overall closure base does round-trip running in the running tunnels.
2. Forming modules: it is made of hard steel, with a rigorous use of CNC finishing materials produced to ensure the hardness and precision of the molding modules. These modules are easy and convenient to change
3. Coiler :Single position or double position with torque motor.
4. Electrical parts: ABB inverter, Schneider contactor, RKC temperature controllers etc.
Specifications:
|
Diameter Scope |
4.5-9 |
9-32 |
32-50 |
|
Main Extruder |
SJ-30 |
SJ-45 |
SJ-65 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Output kg/h |
10 |
40 |
80 |
|
Main Motor Power kw |
4 |
11 |
18.5 |
|
Corrugator Power kw |
1.1 |
1.5 |
1.5 |
|
Mould Block Pairs |
42 |
44 |
44 |
|
Cooling Type |
Water and air cooling |
||
|
Linear Speed (m/min) |
6-10 |
8-12 |
8-15 |
|
Counting Type |
Sensing counting |
||
|
Winding Type |
Automatic/Manual |
||

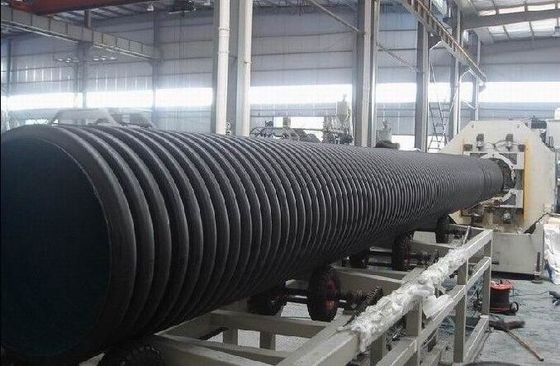

Application of double wall corrugated culvert pipe making machine
A)Storm water and sewerage
B)Control shafts
C)Conveyor pipes
D)Structural and civil engineering
Competitive Advantage:
1. inquiry and consulting surpport
2. machine tesiting surpport
3. train local workers how to install and use the machine
4. engineers availiable to service machinery overseas
