Product Details:
|
Condition: | New | Material: | PVC |
---|---|---|---|
Screw Design: | Double Screw | Automatic Grade: | Fully Automatic |
Dimension: | According To Model | Warranty: | 12 Months |
Place Of Origin: | Shandong , China | Voltage: | 380V50HZ Or Customized |
High Light: | Plastic Extrusion Equipment,Plastic Extruder Machine |

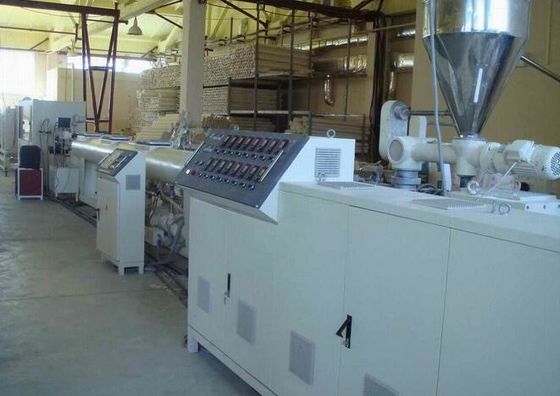

PVC Flexible Plastic Pipe Extrusion Line / Twin Screw hose pipe Making Machine
Quick detail
PVC pipe extruder machine /VC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
Description:
1. Model SJZ series twin conical screw wxtruder is a kind of special equipment for extruding PVC powder . with different sorts of molds and auxilary machines. it can produce all sorts of Pvc plastic pipe material, profield material , board material , sheet material , bar material and granulation. The screw has applied oil cooling systerm, barrel is cooled by special wind cooling systerm. the systerm has applied special computer control . According to customer's requirements , most reasonable screw can be made so as to achive best plasticity state and material quality. The screw is made by high presion special digital screw miller, extruding property can be highly harmonized . it has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly shared and cut.
2. The distribution box is specially designed , pull force bearing is fully imported , and the and the drive life span can be prolonged. it can bear larger extruding pressure. the eletrical systerm has mainly applied imported parts.it has multiple alsrm systerm , and there are few problems which can be easily eliminated. the cooling systerm has applied special design , heat emission area is enlarged , the cooling is rapid , temperature control tolerance can be +1 or -1.
Main Technical Parameter
Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
1.PVC pipe extrusion line is mainly used in making UPVC and PVC pipes with various tube diameters and wall thickness. Pipe is applied to agricultural and construction water supply and drainage, overhead or underground wire and cable.
2. applicable to the producing of all different kinds of high precise and efficient medical soft tubes, such as perfusion set, infusion set, catheter tube, nasal tube, suction tube, trachea cannula, anaesthesia tube, oxygen tube, latex tube and PVC short tube of disposable infusion apparatus and other medical soft tube product.
Our competetive advantages:
1. we have more than 15 years experiences in produce plastic machinery
2. we offer technical assistance , and we can train the local workers until they can operate the machine
3. we have good pre-sale and after-sale service
