| Brand Name: | AORUI |
| Model Number: | SJ65/33 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |
Stable running Plastic Extrusion Line / Extruder For PE Twin Pipe
Quick detail
1. First class pipe die was designed with many years experience, Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device.
2. PE Twin pipe extrusion machine , pipe extruder machinery , plastic twin pipe extruder.
Description:

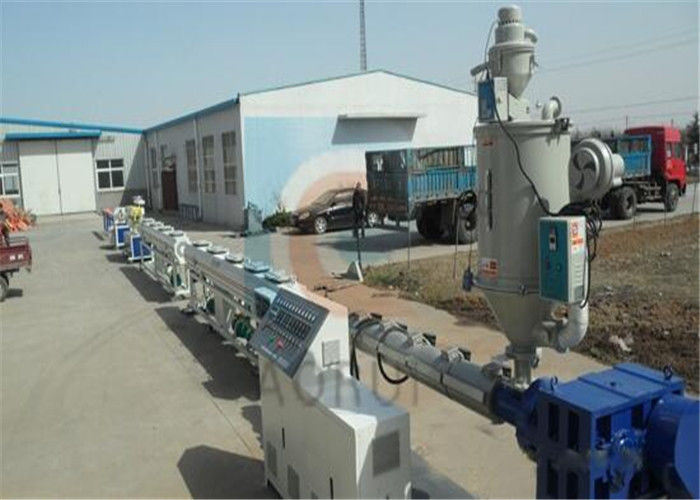

1. Perfect twin pipe vacuum sizing systerm , optional length set and accurate adaption stacker.It contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.

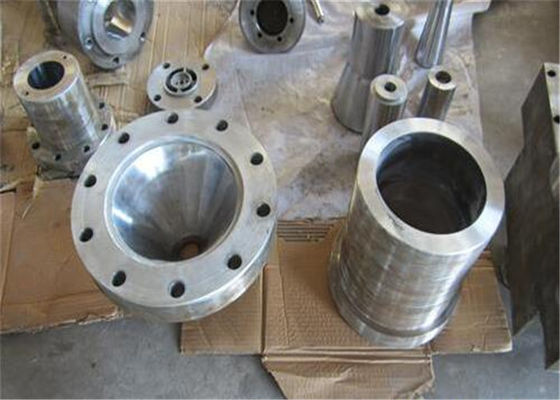

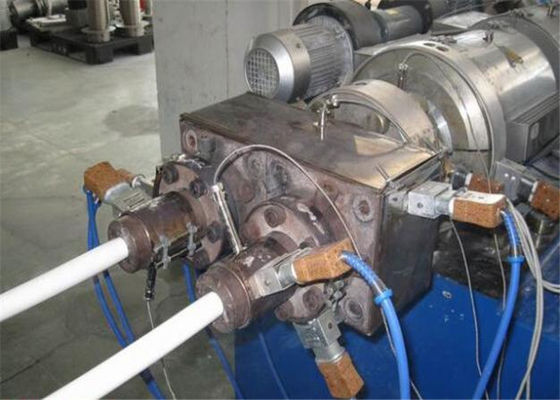

2. Extruding die: it adopts latest designed die head with spiral distributing flow channel, built-in Temp.control device which make extrusion more evenly and regulution more conveniently.
3. Vacuum calibration and spraying cooling trough: advanced water loop vacuum calibration, equipped with adjusting device for roundness and multi-section 6m spraying water tank, ensure perfect calibration; the body of tank is made of stainless steel.
4. Haul off machine , it has two claw , four claw , six claw , eight claw to satisfy manufacturing requirements.
5. Cutting unit: we can adopt saw cutting , planet cutting or according to customer's requirements.
Main Technical Parameters
| Extruder Model | SJSZ-51X105 | SJSZ-65X132 |
| Accessory Machine | GFDP-63 | GFDP-63 |
| Pipe Diameter(mm) | 16-63mm | 16-63mm |
| Production speed | 12m/min | 12m/min |
| Max.Output | 160kg/h | 220kg/h |
Application:
1. It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.
2. The PE Pipe can be used in irrigation.
Why choose us:
1. we have more than 15 years experiences.
2. we will invite customer to visit ourfactory to see and test the machine.
3. we can provide technical assistance.
