CE & ISO9001 Certificate Twin Screw Extruder PVC Fiber Reinforced Soft Pipe

CE & ISO9001 Certificate Twin Screw Extruder PVC Fiber Reinforced Soft Pipe

Quick detail

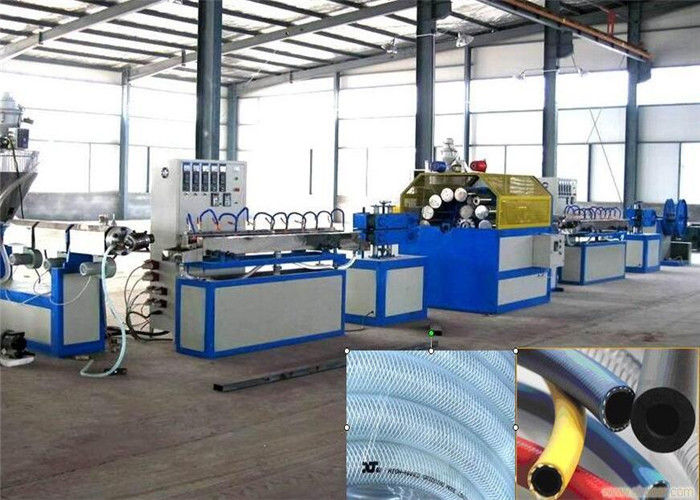

1. PVC Fiber Reinforced Soft Pipe Production Line

2. PVC Fiber Reinforcing Hose Production Line

3. PVC Garden Pipe Making Machine / Pipe Extruder

Description:

1. The pvc fiber enhancing soft pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid . it is widely used in such areas as mechanical engineering , coal mine , petroleum , chemical industry , agriculture irrigation , civil application(solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.

2. Process flow:

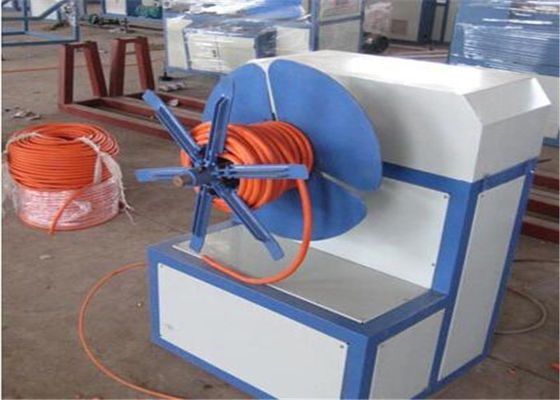

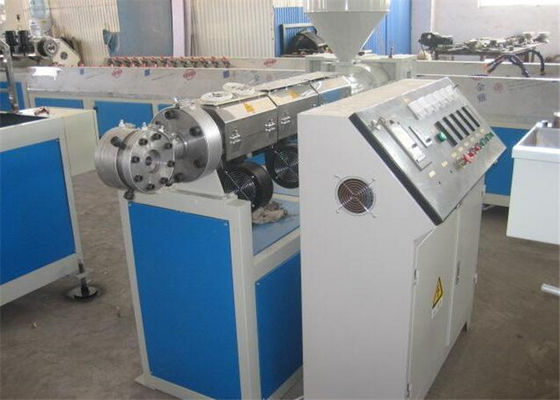

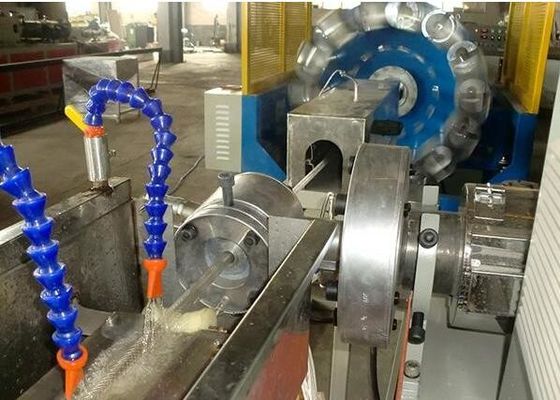

Virgin material+additive--mixing--granulating--conveying feeding--single screw extruder--extruding mould--spray cooling water tank--belt haul-off--fibre braider--warm-up oven--single screw extruder--coating mould--spray cooling water tank--belt haul-off--meter measurer--winder--finished product insepcting&packing

3. The PVC fiber reinforced pipe making machine , pvc fiber reinforced production line is designed to produce PVC fiber reinforced hose ,the wall of which is three layes,outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine,oil,chemical,agriculture irrigation ,gas and building.

.

Main Technical Parameters:

Application:

   The pvc fiber reinforced pipe is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine,oil,chemical,agriculture irrigation ,gas and building.

Our advantage:

1. we supply all the support , such as engineers , drawings , and instruction manual.

2. we could supply trun key project to you.

3. fast develivery time , and good quality
