Product Details:
|
| Condition: | New | Screw Design: | Double Screw |
|---|---|---|---|
| Place Of Origin: | Shandong , China | After-sales Service: | Engineers Availiable To Service |
| Automatic Grade: | Fully Automatic | Raw Material: | PVC |
| Model Number: | SJSZ65/132 | Voltage: | 380v 50HZ |
| High Light: | Plastic Extrusion Equipment,Plastic Extruder Machine |
||

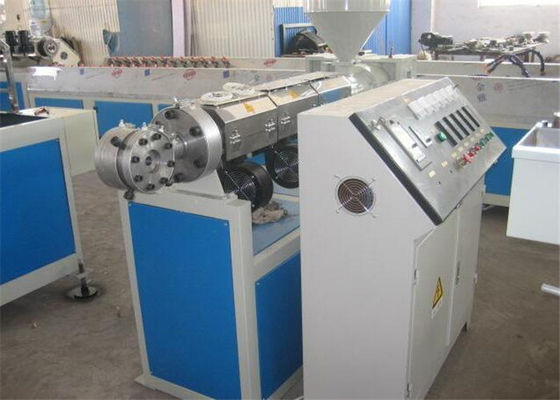

Hot Sale PVC Fiber Reinforced Soft Pipe Production Line / PVC Garden Pipe Extrusion Machine
Quick detail
The pvc fiber enhancing soft pipe , also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid. it is widely used in such areas as mechanical enginerring , coal mine , petroleum , chemical industry , agriculture irrigation , civil application (solar energy water heater , gas-jar) , also it can be used in irrigating garden and lawn.
Sepecification:
1. Working flow

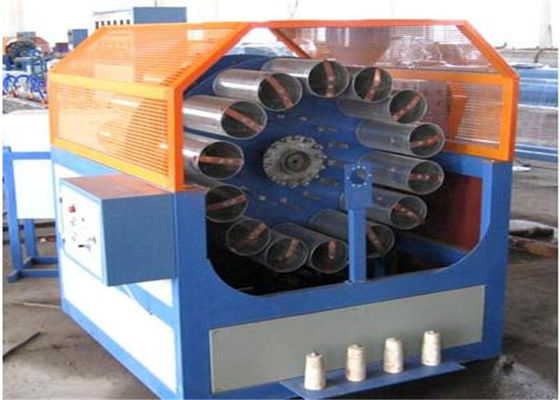

Main extruder-die-braider-cooling bath-drying tank-haul off-winder-ink printer-eletric cabinet
2. This line is the newly-developed product of our company, which is mainly used to produce PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for water.
3. PVC Fibre Reinforced inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fibre reinforced net. The pipe is suitable for the conveying of corrosive gas or liquid.
4. It can be widely used in the industries of machinery, coal mine, oil chemical plant, agricultural irrigation, building, solar water heater, coal gas pot, etc. After changing some parts or add some equipments, the line is suitable for the production of PVC screw thread colored pipe(shower pipe) with PET film inside. It ha beautiful appearance and is used in solar water heater and so on.
Technical parameters:
| Model | LGSJ65 | LGSJ45/30 |
| Extruder | SJ65/28 | SJ45/30 |
| Diameter Range(mm) | Φ12-Φ50 | Φ6-Φ14 |
| Output | 40-75 | 20-40 |
| Installed Power(KW) | 50 | 35 |
Application:
This line is designed to produce PVC fiber reinforced hose , the wall of which is three layers , outer and inner layer are soft PVC hose , middle layer is Terylene fiber network , which has good chemical and physical property . it is mainly used for the transprotation of high pressure or corrosive gas, and is widely used in the machinery , coal mine , oil , chemical , agriculture irrigation , gas and buliding.
Our AdvantageS:
1. More than 15 years experiences
2. high quality and reasonable price
3. engineers availiable to go abroad to service
