PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation

PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation
PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation

Large Image :  PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE & ISO9001
Model Number: SJSZ 51/105
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 30 sets per quarter

PVC Plastic Pipe Extrusion Line , PVC Pipe Extrusion Manchinery For Irrigation

Description
Condition: New Type: Plastic Pipe Production Line
Screw Design: Double Screw Application: Pipe
Place Of Origin: Shandong , China(Mainland) Certification: CE & ISO9001
Voltage: 380V 50HZ After-sales Service: Engineers Availiable To Serive
High Light:

Plastic Extruding Machine

,

Plastic Extruder Machine

PVC Plastic Pipe Production Line , PVC Pipe Extrusion Manchinery For Irrigation





Quick detail

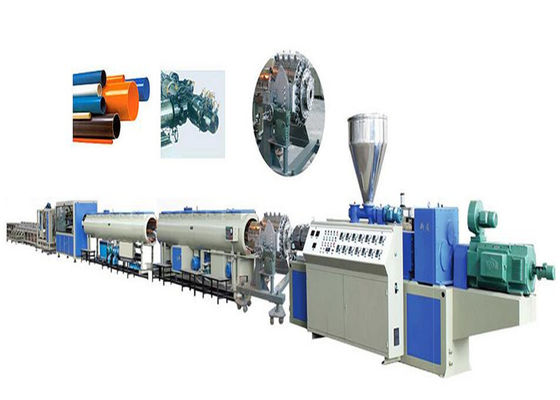

1. The PVC plastic pipe material production line consists mainly of twin conical (parallel)screws extruder , vacuum calibrating tank , tractor  ,haul-off unit , cutting unit  ,tilter  ,etc.



2. PVC PE PP PPR Plastic Pipe Extrusion Extruder Machine is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.



3. PVC Pipe Machine Production Process
(PVC Powder +CACO + additive ) → Mixing (300/600 Mixer Machine) →twin screw extruder →mould and calibrator → vacuum forming machine →haul off machine → Printer (optional) →cutting machine →stacker →Belling machine (optional)







Description:





Our PVC pipe production line has the features as below:




1. Good components: Siemens Beide main motor, ABB inverter, Siemens & Schneider low voltage electrics, Omron temperature controller

2. Good design and good outlook: We design the machine for easier operation and stable performance. The haul off machine and cutter is fully closed for safety purpose. Planetary socket is using in some machines for wire connection.



3. The arwing machine includes two-claw type , three-claw type , four-claw type , six-claw type , eight-claw type , etc.









Main Technical Parameter



Specification GF63 GF110 GF160 GF250 GF400 GF630 GF800
Item

diameter

16-63

diameter 16-110 diameter 32-160 diameter 63-250 diameter 160-400

diameter

315-630

diameter 450-800
Diameter of pipe material 16-63 16-110 32-160 63-250 160-400 315-630 450-800
claw number of drawing machine 2 2 2 3 4 6 8
pulling force 6 8 11 20 30 40 50
drawing speed 15 12 8 9 4 2 2
total power of auxiliary machine 14 14 14 21.5 41 56 64



Application:



Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipe line.





Our competetive advantages:



1. We have good pre-sales and after-sales service



2. we have good quality and reasonable price



3. our engineers availiable to service
