| Brand Name: | AORUI |
| Model Number: | SJSZ65/132 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |

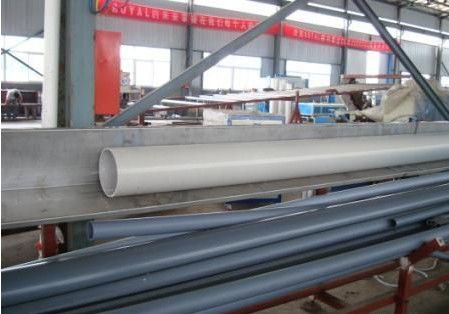

16-800mm PVC Pipe Extrusion Machine , Plastic Pipe Making Manchine For Irrigation
Quick detail
Our main products as below:
Description:
1. PVC pipe extrusion machine/ line is mainly used in the production of PVC pipe,The producing line can be adjusted according to clients' requirements . What's more, the line can work at high capacity and be easy to maintain.
2. GF series plastic pipe material production line is mainly used in the area of agricultural water supply systerm , architectural water supply systerm , pavement of cables , etc.as well as pvc pipe material of all sorts of pipe caliber and wall thickness.
3. With special device , it can produce inner wall sprial pipe , inner wall hollow pipe , and core layer bulop pipe , etc. it can also produce pp , pe , abs & ppr , pex , silicon core pipe and pipe material of other material. The plant-shaped cutting machine is fully qutomatic computer digital control , it has such advantage of simple operation , reliable property , etc. it has reached world advanced level.
4. spiral type die head can not only ensure high speed extrusion, but also avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.
5. Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipe line.
Our competetive advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
