Wood Plastic Composite Extrusion Line
Created with Pixso.

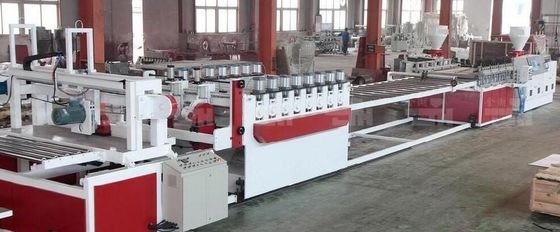

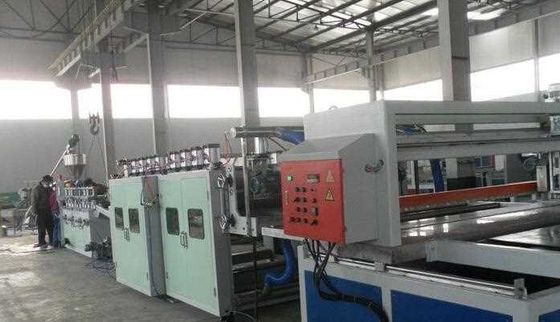

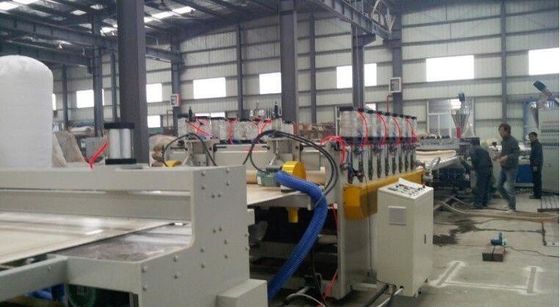

WPC Wood Plastic Composite Outdoor Board Extrusion Line , Wood Composite Extrusion Manchine

WPC Wood Plastic Composite Outdoor Board Extrusion Line , Wood Composite Extrusion Manchine

Brand Name: AORUI
Model Number: SJSZ65/132
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter
Detail Information
Place of Origin:
ShanDong China
Certification:
CE UL CSA ISO9001
Condition:
New
Brand Name:
AORUI
Certification:
CE & ISO9001
Screw Number:
Two
Model:
SJSZ65/132
Place Of Origin:
Shandong , China
Control:
Frequency Control
Automatic Grade:
Fully Automatic
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 sets per quarter
Highlight:

WPC Extrusion Line

,

Wood Plastic Production Line

Product Description

WPC Wood Plastic Composite Outdoor Board Extrusion Line , Wood Composite Extrusion Manchine

Quick detail:


1. Wood Plastic Composite (WPC), nowadays, is one of the most charming products in plastic industry. Thanks to concerns on our environment and enormous demands, WPC is becoming more and more popular all across the world. The market, now, has transferred from North America and EU to other countries. It is expected that WPC should replace wood in the near future.



2. WPC not only presents woody texture, beautiful and elegant outlook, but also has plastic characteristics, such as anti-acid, antiseptic, fireproof, waterproof, etc. Moreover, WPC can be totally recycled and reproduced, dramatically reducing cost and influence on the environment.





Description:



1. COOWIN series conical twin screw extruder is a highly efficient agglomeration and extruding equipment. Machines of this series feature low shearing rate, uneasy degradation,even plastication and agglomeration, reliable quality,wide application range and long servicing life. Using PE powder as raw material for a direct forming, the exturders perform an excellent effectiveness. These machines have automatic temperature control, vacuum gas exhaustion, oil cooled screws, stepless speed regulation, as well as a forced and self-cleaning mechanism.



2. Basic design
PE/PP + wood flour + accessory ingredient, a system of
extrusion line.

Output: 340 -- 380kg/h


3. Maximum Product size: 500mm width and 40mm
thickness (solid profiles)



4. Equipment components:
(1) Screw loader
(2) CWEф65/132 conical twin screw extruder
(3)DF6000 vacuum cooling calibrator
(4)Hauling & cutting machine
(5) Stacker
(6)Die


Applications:


 This line is specialized in PVC,PE,PP wood-plastic foamed panel, decking panel . it has high capacity, stable extrusion , high foamed such advantages. It can produce various decking products with widely usage. High rigidity, smooth and paleography, the proportion is within 0.6-0.9kg/m3.


Specifications:


Model

SJSZ65/132,SJSZ80/156,SJSZ92/188

usage

extrusion outdoor decorative

raw material

recycled PE/PP,wood powder, additive material,etc

product size

maximum:400mm,or according to prdroduct’s drawing

Extruder feature

Special designed extruder

wood powder ( wood fiber)

high volume of addition up to 50~75 percent

Plastic proceed

PP,PE,PVC,wood plastic composite

Auxiliary machine

Emboss machine,sanding machine,polishing machine

Product type

Dustbin, Sound insulation board
(wall),edging,blinds,bulkhead,curtain rod,



Competitive Advantage:
1.We can make and manufacture products according to customer specific needs.
2.Provide best and professional service for you, please contact with us freely.
3.For more information, please contact us at any time.
4.Stable performance, best price, good quality , good after-sales service.
