|Place Of Original:||Shandong , China||Certfication:||CE&ISO9001|
|Automatic Grade:||Fully Automatic||Warranty:||1 Year|
|Delivery Time:||About 35days||After-sales Service:||Engineers Available To Service|
|Screw&Barrel Material:||38Cr MOAIA||Brand Name:||AORUI|
WPC Extrusion Line,
Wood Plastic Production Line
PVC PP PE Wooden Plastic Production Line , wood Composite Plastic Skirting Board Extruder

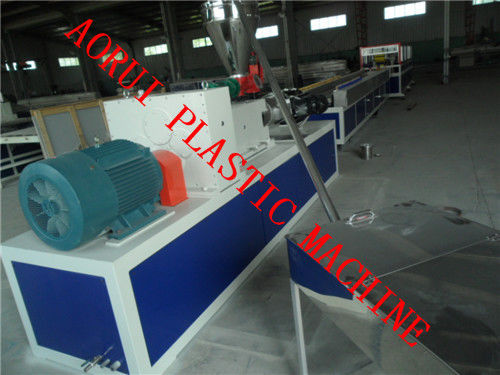

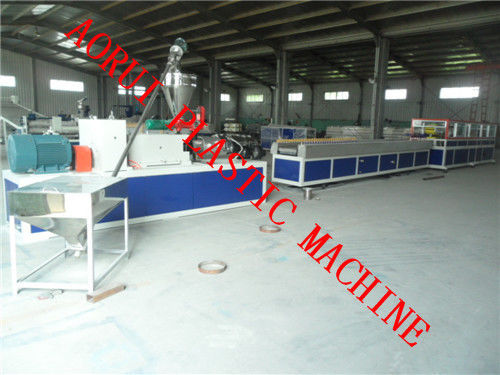

1. Wooden Plastic Production Line=Conical Twin Screw Extrusion Machine+Vacuum Forming Table+Traction Machine+Cutting Machine+Rack
2. PVC and PVC wood composite crust foamed board( building board, WPC plate) extrusion line, is our company new product according to the market need, it could reduce the cost, recycling the material and reduce the pollution.
1. Using special designed screw and barrel for extruder. Extruder stand-alone or two mixed directly extrusion,second extrusion after granules, save power and space. With high yield,stable extrusion pressure.
2. Screw design shear force is small,easy to cut teh wood fiber material. Screw and barrel using inlay and spray corrosion alloy, greatly extend the service life.
3. A whole extrusion line includes the following units:
1, material screw feeder,
2, conical twin-screw extruder,
3, calibration table,
4, haul-off and cutter,
1, material mixer
2, matrials compounding machine
3, door surface processing mahcine---sanding, embossing, laminating, hot stamping, carving
4, crusher and miller for reusing the water wpc profiles
Main technical parameters:
|Type||SY Model 120 small profile||SY Model 240 small profile||SY Model 240 small profile||SY Model 240 small profile|
|Valid mold length Of Setting table /mm||3000||4000||400/5000||6000/8000|
|Max drawing Force||20||30||40||40|
|Valid Length of Crawler /mm||1600||1800||2250||2400|
|Water Consumption/ m3h-1||2.5||4||5||6|
|Gas Consumption /m3h-1||8||10||12||15|
1. CE & ISO9001 certificate
2. High quality and reasonable price
3. Engineers availiable to service
4. We are factory , customers can go to our factory to see the machine and test the machine.
Contact Person: AORUI
