CE & ISO PVC Foam Board Production Line Double Screw PVC Plastic Board Extrusion Machine

Brand Name:	AORUI
Model Number:	SJSZ92/188
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Condition:

New

Automatic Grade:

Fully Automatic

Screw Number:

Twin Screw

Extruder Model:

SJSZ80/156

Capacity:

380kg/h

Trademark:

AORUI

Main Motor:

55kw

Port:

QingDao

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Foam Sheet Extruder

PVC Foam Board Production Line

Product Description

CE & ISO Certificate pvc Foam Board Making Machine , PVC Plastic Board Extrusion Line

Quick detail:

1. Product Description

We have three board / sheet extrusion line:

1.Hollow profile board extrusion line

2.sheet / board extrusion line

3.single and multi-layer sheet extrusion line

2. Technological process:

Plastic sheet extrusion machine -----Extrusion line-----Calibration unit-----Haul off unit-----Cutter-----Laminating machine etc.

Description:

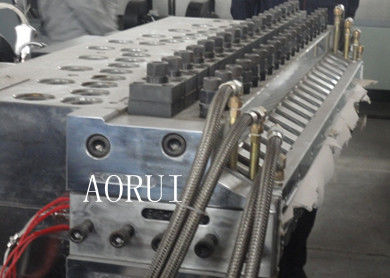

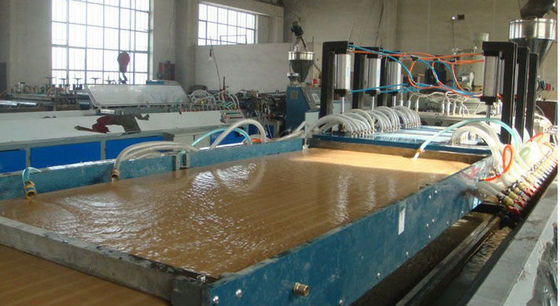

1. PVC skining foaming board not only has much more smooth surface, but also the hardness is better. In additon, mechanics performance of skining foaming board is better than that of free foaming board.PVC skining foaming board extrusion line is composed of conical twin-screw extruder, die, vacuum calibration unit, ten hall-off unit and so on, our company can provide the formula and all the processing techniques.

2. PVC foramed plate is a late-model plate of surface crusting with its core layer under foaming treatment which ensures the smooth surface, light weight and strong indensity, and it can be processed like wood plate. PVC foamed plates are widely used in fields of advertise lettering, construction, decoration, windows and doors of furniture, etc.

Main tech parameters of PVC foam board making machine

model	SJSZ45	SJSZ51	SJSZ65	SJSZ80	SJSZ92
screw stem diameter(mm)	45/90	51/105	65/132	80/156	92/188
rotational speed of screw stem(r/min)	1-45	1-45.5	1-38	1-36.9	1-34.7
effective work length of screw stem(mm)	1070	1100	1440	1800	2500
main power (kw)	15	22	37	55	110
cylinder heating power(kw)	9.6	11.5	24	36	88
capacity(kg/h)	70	80	250	360	1000
central height of machine(mm)	1000	1000	1000	1000	1000
Net weight(kg)	28000	3000	4000	5000	5500

Application of pvc foam board production line

1. Wood-plastic mould can be reproduced like wood.It can be cut,planed,madea bond by glue or fastened with nalis or screws.It's easy to maintain.

2. Preserved from acid,alkali,corrosion,impervious to attacks by insects and rats,wood-plastic mould plates provide less moisture absorption.

3. The product can be recycled and degraded for environmental protection

Competitive Advantage:

1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
