| Brand Name: | AORUI |
| Model Number: | SJSZ51/105 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 30 sets per quarter |

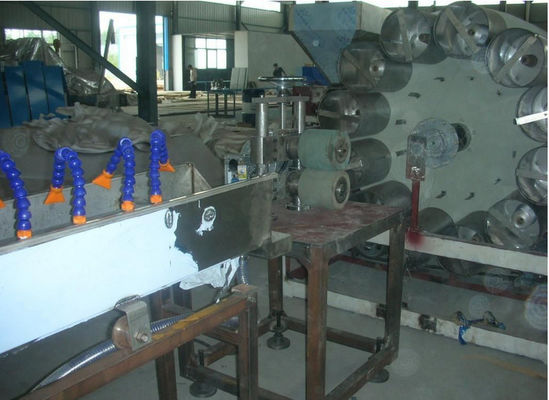

PVC Fiber Reinforced Soft Pipe Making Machine , Plastic PVC Fiber Pipe Extrusion Machine
Quick detail
1. PVC braided hose plant manufacture by AORUI plastic , this plant mainly use for manufactring pvc connection pipe,braided hose for all application, production of this plant is depend upon the model of plant.

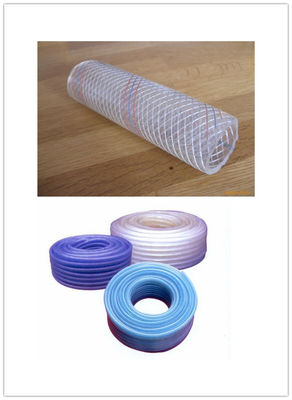

2. PVC fiber reinforced hose, also known as PVC network pipe, commonly known as plastic snakeskin tube, suitable for transporting the gas and liquid with pressure or corrosive , widely used in machinery, coal, petroleum, chemicals, agricultural irrigation, construction, civil (solar water heaters, gas cylinders) and other fields.
Sepecification:
1. This line is the newly-developed product of our company, which is mainly used to produce PVC fiber reinforced soft pipes. This kind of pipe is characterized by innocuity, transparency, pressure resistance, pulling resistance, acid and alkali resistance, good-looking appearance, tenderness and handiness, durability, etc. So the final products of this line are widely used in conveying pipes for water.
2.Equipment list:
2.1. Feeding system two sets
2.2. SJ-45/28 single screw extruder two sets
2.3. Electric control system two sets
2.4. Extrusion mould and coating mould two sets
2.5. Cooling water tank two sets
2.6. Belt haul-off machine two sets
2.7. Fiber braiding machine one set
2.8. Double-position winder one set
2.9. Oven one set

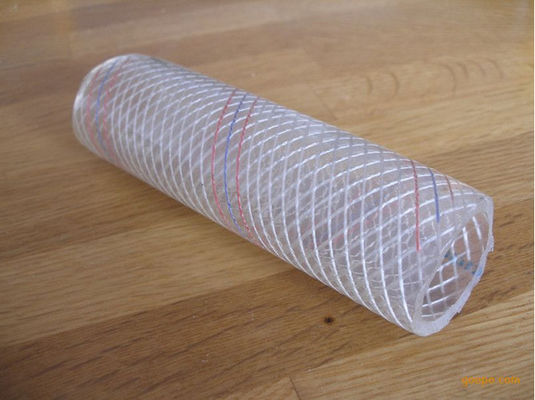

3. The wall of pvc fiber pipe is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas ,and is widely used in the machinery ;coal mine, oil, chemical, agriculture irrigation ,gas and building.
Technical parameters:
pvc fiber pipe line
| Model | JDF45 | JDF55 | JDF65 | JDF75 |
| Extruder | SJ45/30 | SJ55/30 | SJ65/30 | SJ75/30 |
| Diameter range (mm) | 6-16mm | 8-25mm | 12-50mm | 20-50mm |
| Output(kg/hour) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installation power(kw) | 35 | 42 | 50 | 65 |
Our Advantages:
1) We give you suitable suggestions according to your actual need.
2) Technical support: available lifelong
3) Under the right operation way, the screw and barrel is for 10000 working hours.
4) Our expert will answer any inquiry within 48 hours and it will be solved as soon as possible.
5) The customer can send the engineer to our company with training
6) Our engineer can be to the Buyer's company for installation and testing the lines.
7) The seller provides you with complete technical support documents and the relative drawings of the electric components written in Chinese and English.
