Product Details:
|
| Brand Name: | AORUI | Condition: | New |
|---|---|---|---|
| Screw Design: | Double Screw | Certificate: | CE & ISO9001 |
| Material Of Screw & Barrel: | 38Cr MOAIA | Automatic Grade: | Fully Automatic |
| After-sales Service: | Engineers Availiable To Service | Place Of Original: | Shandong , China |
| High Light: | plastic extrusion machine,plastic production line |
||
PVC Pipe Making Machine , Plastic Cpvc Pipe Extruder Machine , pvc Pipe Extrusion Line
Quick detail
1. PVC pipe making machine:
PVC pipe extruder machine /VC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.
2. pvc series plastic pipe extrusion line is mainly used in the area of agricultural water supply, architectural water supply, gas supply and transportation, telecommunication cables etc. This line has the advantages of easy operation, high automatic degree, stable and reliable production, well received by customers.
Description:
1. GF series plastic pipe material production line is mainly used in the area of agricultural water suply systerm, architectural water supply systerm,pavement of cables, etc. as well as pvc pipe material of all sorts of pipe caliber and wall thickness.

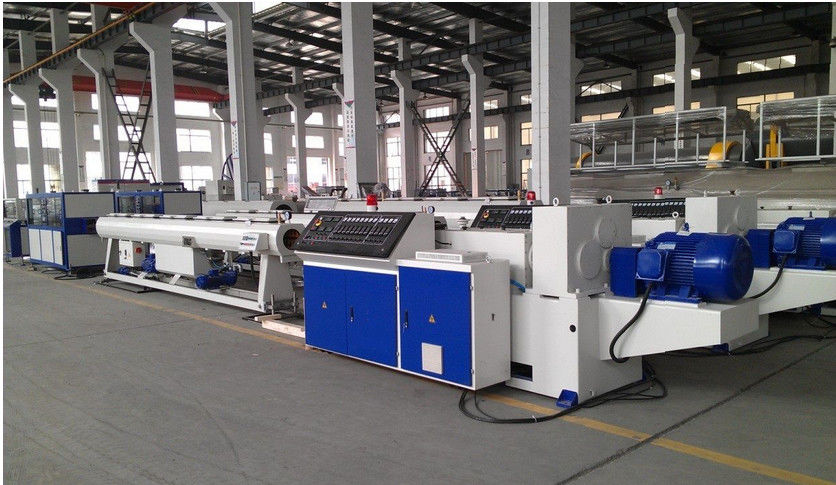

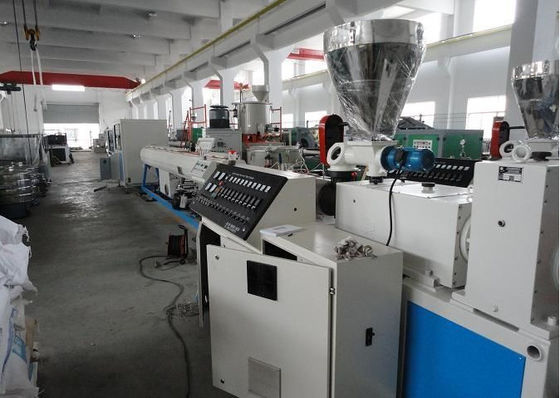

2. This machine group consists mainly of twin conical(parallel) screws extruder , vacuum calibrating tank , tractor , haul-off unit, cutting unit , tilter , etc. Single screw extruder and haul-off unit have applied imported A/C inverter.Both vacuum pump and driving motor have applied excellent products.
3. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.

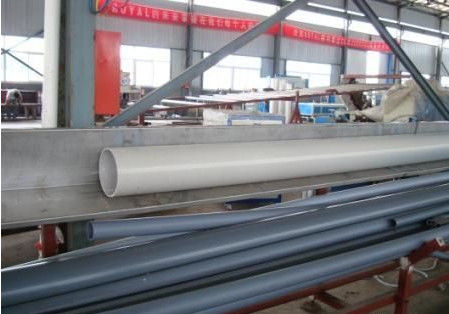

4. Pipe produced by this line has excellent hardness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance and creep resistance, hot-melt connectivity, and other advantages, it is the first choice of city gas and water transmission pipe line.
Main Technical Parameter
| Specification | GF63 | GF110 | GF160 | GF250 | GF400 | GF630 | GF800 |
| Item |
diameter 16-63 |
diameter 16-110 | diameter 32-160 | diameter 63-250 | diameter 160-400 |
diameter 315-630 |
diameter 450-800 |
| Diameter of pipe material | 16-63 | 16-110 | 32-160 | 63-250 | 160-400 | 315-630 | 450-800 |
| claw number of drawing machine | 2 | 2 | 2 | 3 | 4 | 6 | 8 |
| pulling force | 6 | 8 | 11 | 20 | 30 | 40 | 50 |
| drawing speed | 15 | 12 | 8 | 9 | 4 | 2 | 2 |
| total power of auxiliary machine | 14 | 14 | 14 | 21.5 | 41 | 56 | 64 |
Application:
With special device , it can produce inner wall sprial pipe, inner wall hollow pipe, and core layer bulpo pipe , etc. it can also produce PP , PE ,ABS , &PPR , PEX , silicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic conputer digital control , it has such advantages of simple operation , reliable property , etc.it has reached world advanced level.
Our competetive advantages:
1. good pre-sales and after-sales service
2. our engineers can go to aborad to installment the machine and teach the workers
3. easy to operate and high output
