Product Details:
|
| Brand Name: | AORUI | Model Number: | SJSZ65/28 |
|---|---|---|---|
| Raw Material: | PVC | Color: | Bule Or According To Customer's Requirement |
| Warranty: | 12 Months | Output: | 2-30T /DAY |
| Condition: | New | Automatic Grade: | Fully Automatic |
| High Light: | plastic extrusion machine,plastic production line |
||

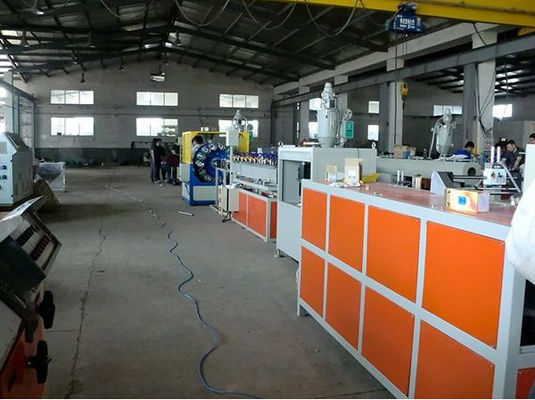

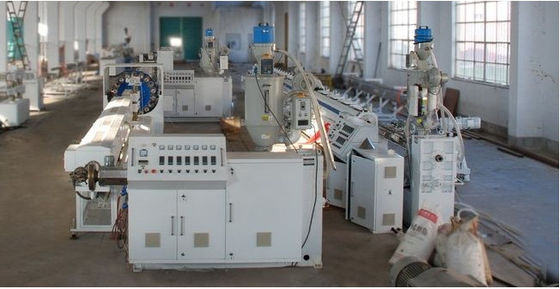

PVC Fiber Clear Soft Hose Reinforced Pipe Extrusion Line , Plastic Pipe Extruder / Plant
Quick detail
1. High efficiency singel screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden,farm, lawn and so on.
5. Sevenstars Machinery:PVC material ---> SJ65/28 extruder 1 --->Moud1 ---> water cooling tank 1--->haul off machine 1 ---> oven ---> pleaching unit--->SJ65/28 extruder 2 ---> Mould2 ---> water cooling tank2 ---> haul off machine 2 --->winder --->pipe rolls
Description:

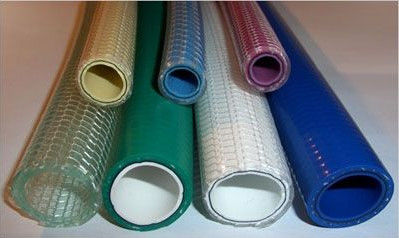

1. This extrusion line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, the outer layer and the inner layer both are soft PVC hose, the middle layer is Terylene fibernetwork, which has good chemical and physical property. It is mainly used for the transfer of oil, air,water,high pressure or corrosive gas, chemical, agriculture irrigation and building.
2. PVC fiber reinforced soft pipe, also called as PVC net grid pipe, is commonly called as plastic plica tube, suitable for transporting corrosive and compressive gas and liquid. extensively apply to machinery, colliery, petroleum, chemical industry, agriculture irrigation, building construction and civil construction (such as solar water heater, gas tank, natural gas and so on). Now it is also used for irrigating parterre and lawn.)
3. PVC pipe, also known as fiber snakeskin tube, mesh tube, mainly middle pressure or corrosive gas and liquid delivery, widely used in machinery, mining, petroleum, chemical, agricultural irrigation, construction, civil (solar water heaters, gas tank) and other fields.
Main technical parameters:
| Model | FT-45 | FT-55 | FT-65 | FT-75 |
| Extruder | SJ45/30 | SJ55/30 | SJ65/30 | SJ75/30 |
| Diameter Range(mm) | 6-16 | 8-25 | 12-50 | 20-50 |
| Output(kg/h) | 20-40 | 30-60 | 40-80 | 60-110 |
| Installed Power(kw) | 35 | 42 | 50 | 65 |
Main Composition of PVC fiber reinforced soft hose extrusion line
| Item | Quantity |
| SJ65/30 Single Screw Extruder | two sets |
| Electric cabinet | one set |
| Nose and Die Mold | one set |
| Stainless Steel Water Tank | two sets |
| Tractor | two sets |
| Winding Machine | one set |
| Other auxiliary tools and parts | one set |
Application:
The pipe is suitable for the conveying of corrosive gas or liquid. It can be widely used in the industries of machinery, coal mine, oil chemical plant, agricultural irrigation, building, solar water heater,coal gas pot, etc.
Equipment warranty:
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device.
